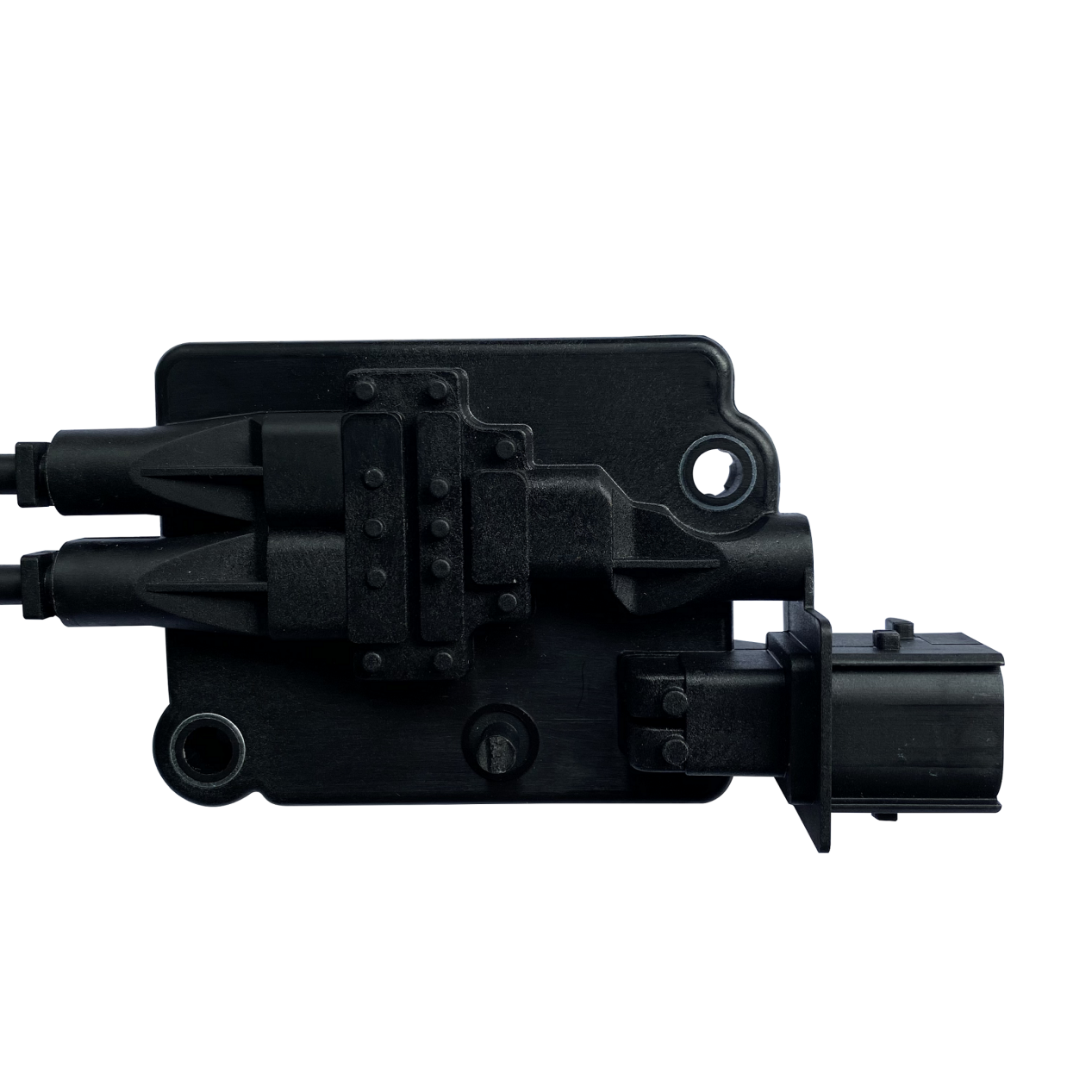

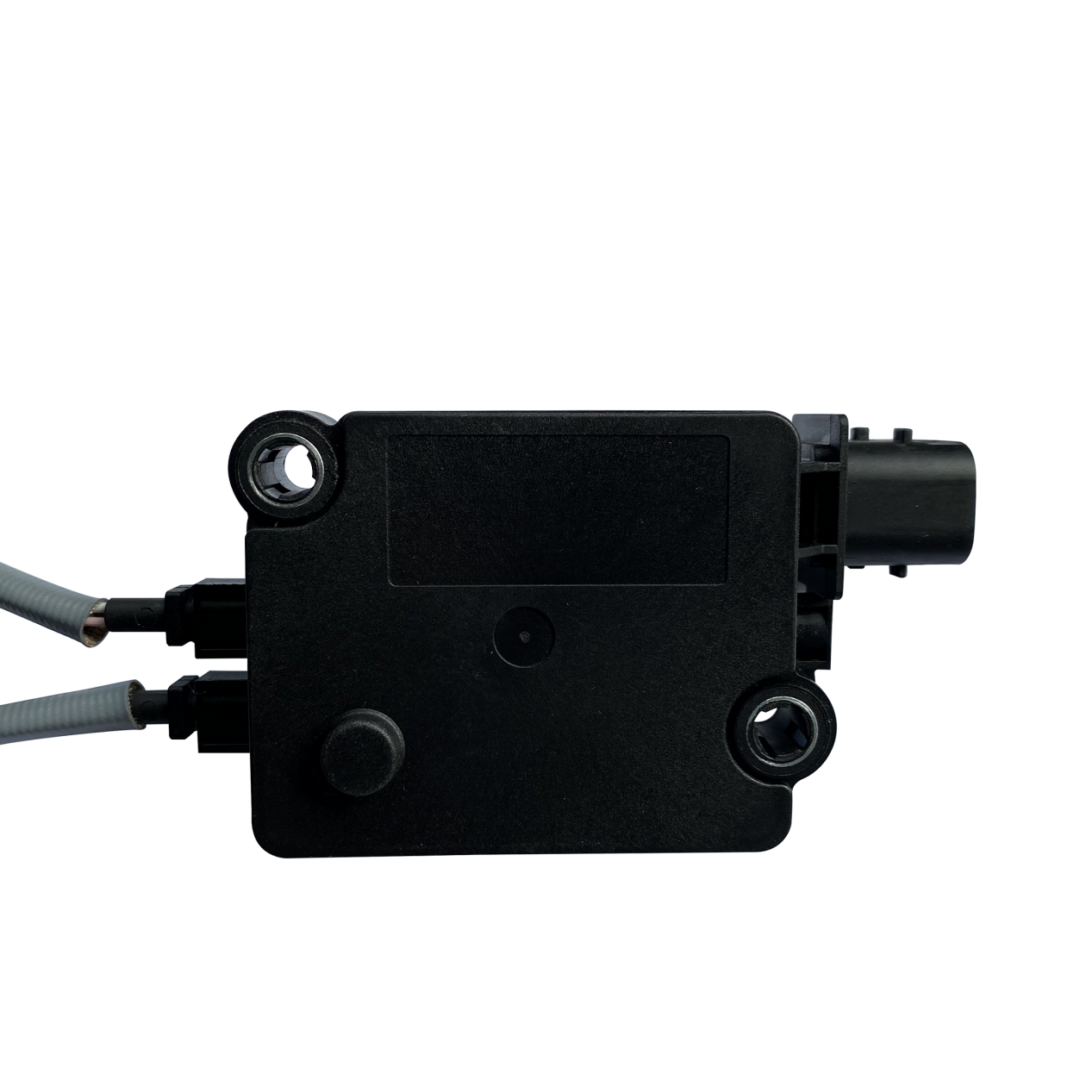

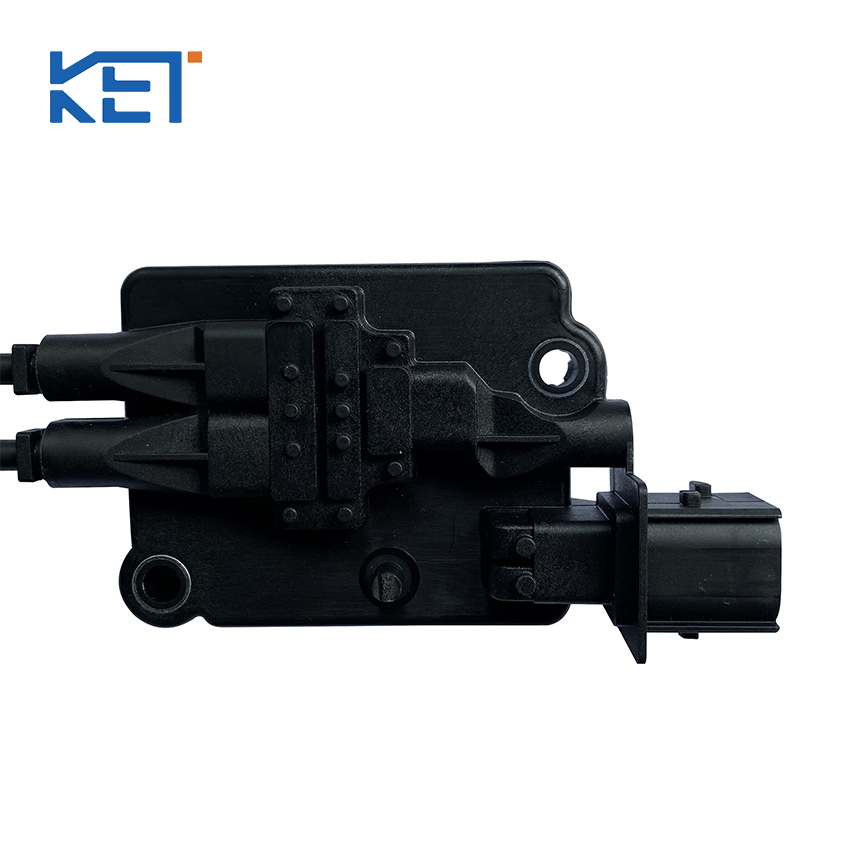

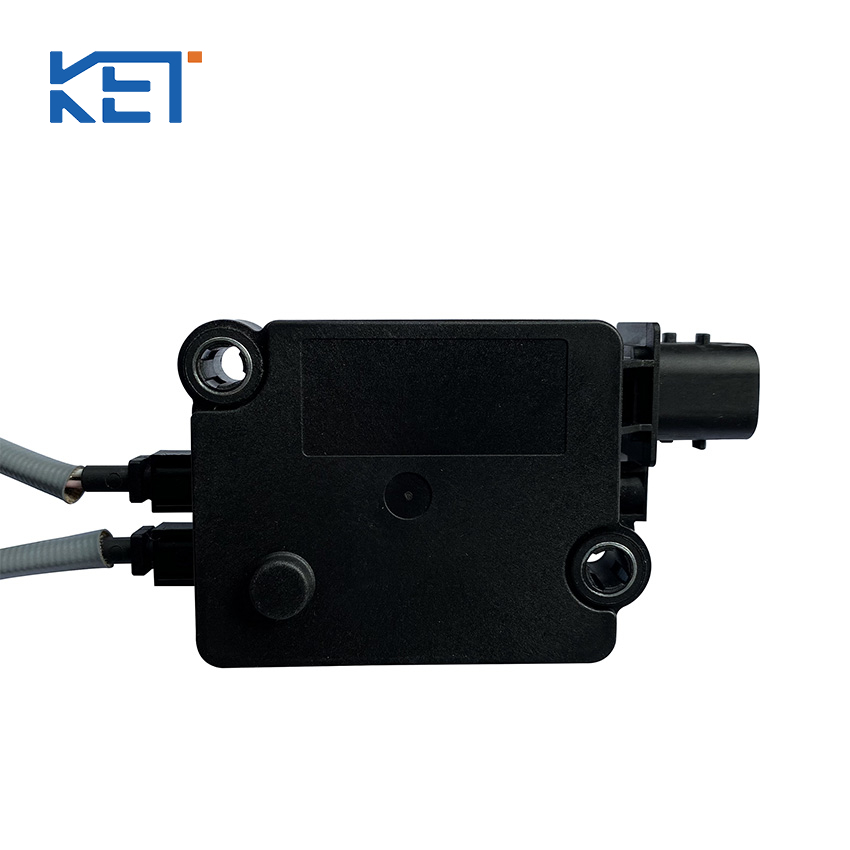

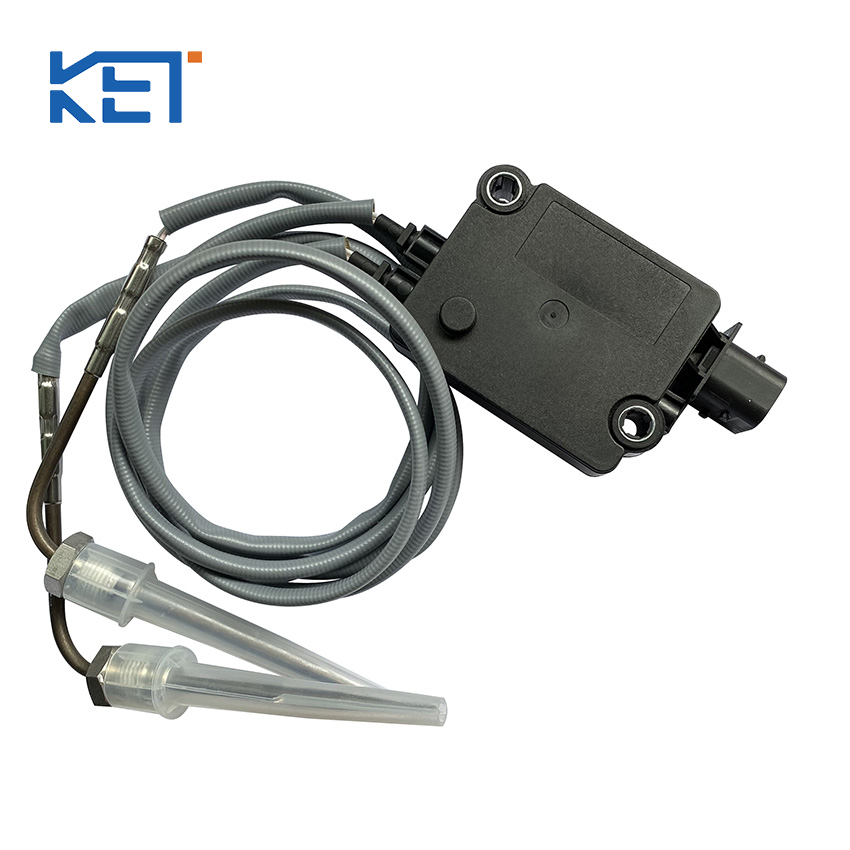

Features of Exhaust Gas Temperature Sensor
The intelligent high-temperature sensor Features of Exhaust gas temperature sensor 2129821 1851853 based on thermocouples can meet the needs of aftertreat systems in various regions around the world, such as Europe,the United States, Japan and South Korea. After measuring the exhaust temperature, it is transmitted to the DCU or ECU through the CAN bus, providing the basic and important information for SCR and DPF control. The product can support customized requirements in terms of probe quantity, message format, wire harness length, software functionality, and structural appearance.
The characteristics of the Exhaust Gas Temperature Sensor.
The company has Exhaust Gas Temperature Sensor.
The characteristics of the Exhaust Gas Temperature Sensor.
Product Specification
Microcontroller | 32-bit Automotive MCU |
Output Signal format | CAN communication sends temperature data to ECU |
Probe type | N-type thermocouple |
Waterproof Rating | IP6K9K |
Mount Type | Engine or frame |
Connector | Tyco 1/2/3/4-1418390-1 |
Diagnosis Time | <3s |
Detection Accuracy | -40~649.99℃，±3℃；650~950℃，±1% |
Number of Channels | 1-4 customizable channels |
Design Life | 20000h |
Operating Environment Temperature | -40～125℃ |
Responsiveness | T63:＜13S |
 |  |  |
The company has Exhaust Gas Temperature Sensor.
Zhejiang Kreation Electronic Technology Co., Ltd. is a smart sensor company invested and founded by E-Quality intelligent Technology Co., Ltd. (E-Quality for short).
it is located inWuxing District, Huzhou City, Zhejiang Province. lt is committed to the research and development of smart sensors and other smart components. Production and sales.
The company's current main products include: NOx sensors, intelligent exhaust temperature sensors, DEF quality SCU,intelligent oxygen sensors, etc.
If you are satisfied with our company's Exhaust Gas Temperature Sensor, you can directly order or consult the Exhaust Gas Temperature Sensor related issues. We will provide you with the best Exhaust Gas Temperature Sensor products and services. We are very happy to cooperate with you and bring you satisfactory products.
