Nitrogen Oxide Sensors, commonly known as NOx Sensors, play a critical role in modern diesel and gasoline engines by monitoring the levels of nitrogen oxides (NOx) in the exhaust system. These gases, including NO and NO2, are harmful pollutants that contribute to environmental issues such as acid rain and smog. NOx Sensors are essential for ensuring compliance with stringent environmental regulations like Euro 6 and EPA standards, and for optimizing engine performance. However, like any other component, NOx Sensors can experience failures that lead to engine problems, increased emissions, and potential legal repercussions. Understanding how to fix a faulty NOx Sensor is crucial for maintaining engine efficiency and reducing environmental impact.
To effectively fix a NOx Sensor, it is important to comprehend how it functions within the exhaust system. The NOx Sensor measures the concentration of nitrogen oxides in the exhaust gases after combustion. It utilizes electrochemical sensing elements that react with NOx molecules, producing an electrical signal proportional to the NOx concentration. This signal is sent in real-time to the
engine control unit (ECU), which adjusts the fuel-air mixture, exhaust gas recirculation (EGR), and other parameters to minimize emissions.
NOx Sensors are typically placed downstream of the selective catalytic reduction (SCR) system and sometimes before it. This positioning allows the ECU to monitor the efficiency of the SCR in reducing NOx emissions and to adjust urea injection rates if applicable. Understanding the sensor's placement aids in diagnosing potential issues related to its environment, such as exposure to excessive heat or contaminants.
Modern NOx Sensors incorporate advanced materials like yttria-stabilized zirconia (YSZ) and employ techniques such as non-dispersive infrared (NDIR) sensing for improved accuracy. They offer faster response times and greater durability under harsh operating conditions. Staying informed about these technologies is beneficial when selecting replacement sensors or troubleshooting.
Identifying the signs of a failing NOx Sensor can help in timely repairs and prevent further damage. Common symptoms include:
Illumination of the Check Engine Light: The ECU detects abnormal readings and triggers the warning light.
Reduced Fuel Efficiency: Inaccurate NOx readings lead to improper combustion adjustments, increasing fuel consumption.
Engine Misfires or Rough Idling: The engine may run lean or rich, causing instability.
Loss of Engine Power: Compromised performance due to incorrect air-fuel ratios.
Emission Test Failures: Elevated NOx levels result in non-compliance during inspections.
Sulfur Smell from Exhaust: Excess NOx can lead to sulfur compounds causing noticeable odors.
If these symptoms are present, it is advisable to inspect the NOx Sensor and related systems for issues.
Proper diagnostics are crucial for accurately determining the cause of NOx Sensor failure. The following steps outline the diagnostic process:
An On-Board Diagnostics (OBD-II) scanner retrieves error codes from the ECU. For NOx Sensors, common codes include:
P2200: NOx Sensor Circuit Low Input
P2201: NOx Sensor Circuit High Input
P2202: NOx Sensor Circuit Low Input Bank 1
P22XX: Series of codes indicating various sensor issues
Advanced scanners can provide live data streams, allowing technicians to observe sensor readings in real-time and compare them to expected values.
Inspect the sensor, wiring harness, and connectors for physical damage, corrosion, or disconnections. Environmental factors like water intrusion, road debris, or thermal stress can damage the sensor or its connectors. Signs of soot buildup, oil contamination, or melting indicate specific underlying issues.
Using a multimeter to check the sensor's resistance and signal output can help determine if it is functioning within specifications. However, care must be taken to avoid damaging the sensor with improper testing techniques.
Understanding the root causes can aid in preventing future failures. Common causes include:
Exposure to substances like leaded fuel, sulfur, or oil residues can poison the sensor's sensitive elements, leading to inaccurate readings or total failure.
Extreme temperatures, especially during rapid heating and cooling cycles, can crack the sensor's ceramic components or degrade its materials.
Voltage spikes, short circuits, or faulty connections can damage the sensor's electronics or disrupt communication with the ECU.
Physical impacts from debris or improper handling during maintenance can fracture or deform the sensor.
Once a faulty NOx Sensor is identified, the following steps can be taken to fix the issue:
While cleaning is rarely a permanent solution, gentle cleaning with appropriate solvents can remove surface contaminants. It is crucial to avoid harsh chemicals that could further damage the sensor.
Repairing frayed wires or corroded connectors restores proper electrical pathways. Using manufacturer-specified replacement parts ensures reliability.
Replacing the sensor involves:
Safety Precautions: Ensuring the engine is off, cool, and the vehicle is on stable ground.
Locating the Sensor: Refer to the vehicle's service manual for exact positioning.
Removing the Old Sensor: Using appropriate tools to avoid damaging threads or surrounding components.
Installing the New Sensor: Applying anti-seize compound if recommended and tightening to specified torque values.
Resetting the ECU: Clearing error codes and performing necessary adaptations or calibrations.

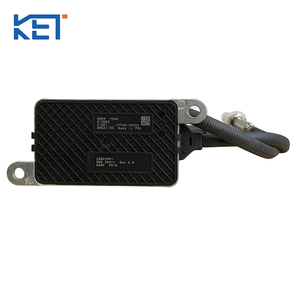

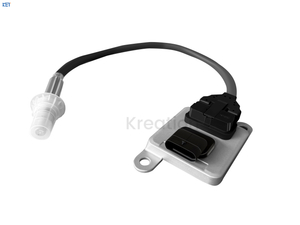

High-quality sensors from reputable suppliers like NOx Sensor 5WK9-6675A ensure compatibility and longevity.
The use of low-quality fuel or incorrect additives can significantly affect the NOx Sensor's lifespan. High sulfur content or impurities lead to sensor contamination. Utilizing fuel that meets the manufacturer's specifications is essential.
For vehicles equipped with SCR systems, the quality of diesel exhaust fluid (AdBlue) is critical. Contaminated or diluted AdBlue can cause deposits that interfere with the NOx Sensor's operation.
Sometimes, sensor issues stem not from the hardware but from software glitches within the ECU. Updating the ECU's firmware can resolve communication errors or misinterpretations of sensor data.
After replacing a NOx Sensor, some vehicles require adaptation procedures to recalibrate the ECU to the new sensor. Failing to do so may result in persistent error codes or suboptimal performance.
Examining real-world examples provides insight into common issues and solutions.
A transportation company experienced repeated NOx Sensor failures across its fleet. Analysis revealed that the diesel fuel supplier had high sulfur levels. Switching to ultra-low sulfur diesel and implementing regular system cleanings reduced sensor failures by 80%.
An owner reported intermittent Check Engine Lights related to the NOx Sensor. Inspection found a wiring harness pinched during prior repairs. Correcting the wiring restored proper function without needing sensor replacement.
Automotive emissions specialists emphasize the importance of proper diagnostics. Experts suggest that premature replacement of NOx Sensors without thorough diagnostics can lead to unnecessary costs. Understanding the interplay between the sensor, ECU, and exhaust after-treatment systems is key to effective repairs.
Experienced mechanics also stress the significance of using genuine or high-quality aftermarket sensors. Substandard components may not meet the required specifications, leading to ongoing problems and reduced sensor lifespan.
Implementing preventative measures can enhance sensor longevity.
Incorporate NOx Sensor inspections into routine maintenance schedules. Early detection of issues can prevent more significant problems.
For vehicles operating in harsh environments, additional protective measures like heat shields or protective coatings may be beneficial.
Failure to maintain functional NOx Sensors can result in non-compliance with environmental regulations.
Regulatory bodies conduct random inspections and emissions testing. Vehicles exceeding allowable NOx emissions may be subject to fines, operational restrictions, or mandatory repairs.
Commercial fleets must adhere to stricter standards. Non-compliance can lead to operational disruptions, reputational damage, and loss of business licenses.
Understanding the financial aspects aids in decision-making.
While repairing or replacing a NOx Sensor incurs immediate expenses, the long-term benefits include improved fuel efficiency, avoidance of fines, and reduced environmental impact.
Some vehicles may have warranty coverage for emissions-related components. Checking warranty terms can alleviate repair costs.
Maintaining the health of your vehicle's NOx Sensor is vital for optimal engine performance, fuel efficiency, and environmental compliance. By understanding how the sensor works, recognizing symptoms of failure, and knowing the appropriate steps to fix it, vehicle owners can prevent costly repairs and contribute to a cleaner environment. Regular maintenance, proper diagnostics, and the use of high-quality parts are essential components of effective NOx Sensor management.
For those seeking reliable replacement parts or professional assistance, consider exploring options like the NOx Sensor products available from reputable suppliers.
