A Diesel Exhaust Fluid (DEF) quality sensor is a critical component in modern diesel engines equipped with Selective Catalytic Reduction (SCR) systems. Its primary function is to monitor the quality of the DEF, ensuring that it meets the necessary standards for effective emissions control. DEF is a solution made from urea and deionized water that is sprayed into the exhaust stream to reduce harmful nitrogen oxides (NOx) into harmless nitrogen and water vapor.
A DEF quality sensor ensures that the DEF solution being used is within the specified concentration range (typically 32.5% urea). If the DEF concentration is too low or contaminated, it can lead to suboptimal SCR performance, increased emissions, and potential damage to the vehicle's emission system.
These sensors are vital in meeting stringent environmental regulations, particularly in regions like Europe, North America, and China, where emissions standards are progressively more demanding.

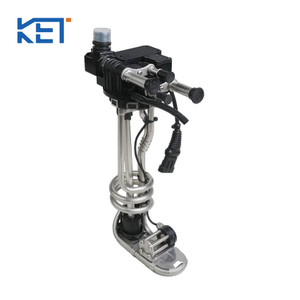

The DEF quality sensor is typically located within the DEF tank or integrated into the DEF module. Its exact location may vary depending on the make and model of the vehicle, but it is usually immersed directly in the DEF fluid to allow continuous monitoring.
In most vehicles, especially heavy-duty trucks and off-road equipment, the sensor is located inside the DEF tank. This placement allows the sensor to measure the urea concentration, temperature, and sometimes the level of the DEF fluid in real-time.
In some configurations, the DEF sensor may be placed downstream in the DEF line, closer to the SCR catalyst. This helps in verifying the quality of the DEF before it is injected into the exhaust stream.
DEF quality sensors primarily use ultrasonic or conductivity-based sensing technologies to determine the concentration of urea in the DEF solution.
Ultrasonic sensors measure the speed of sound through the DEF fluid. The speed varies with the concentration of urea, and by measuring this variation, the sensor can accurately determine the DEF quality.
Conductivity sensors measure the electrical conductivity of the DEF solution, which correlates with the urea concentration. These sensors may also account for temperature compensation to improve accuracy.
Modern DEF quality sensors can also monitor additional parameters:
Temperature: To ensure optimal DEF injection conditions.
Level: To track DEF consumption and alert for low levels.
Contamination Detection: To identify impurities or incorrect fluid types.
Testing a DEF quality sensor involves both on-board diagnostics and manual testing procedures.
Most modern vehicles support OBD-II diagnostics:
Connect a compatible OBD-II scanner.
Retrieve any stored Diagnostic Trouble Codes (DTCs).
Look for DEF-related error codes (e.g., P20E8, P203F).
Observe live data readings from the DEF quality sensor.
Use a Refractometer: Measures the urea concentration manually.
Check Sensor Resistance/Voltage: Using a multimeter, compare readings against manufacturer specifications.
Software Tools: OEM diagnostic tools like Cummins INSITE or Detroit Diesel Diagnostic Link (DDDL) can provide deeper insights.
Sometimes, physical damage or contamination on the sensor can affect performance. Inspect the sensor for deposits, corrosion, or loose connections.
Cleaning a DEF quality sensor should be done carefully to avoid damage.
Turn Off Engine and Disconnect Power: Ensure the vehicle is turned off and battery disconnected.
Remove Sensor from DEF Tank: Carefully detach the sensor following manufacturer instructions.
Rinse with Warm Deionized Water: Avoid using tap water to prevent mineral deposits.
Gently Scrub with Soft Brush: Remove any visible deposits without applying excessive force.
Dry Completely Before Reinstallation: Use compressed air or allow it to air dry fully.
Reconnect and Test: After reinstallation, perform diagnostics to ensure proper function.
DEF quality directly affects the performance of the SCR system. Poor-quality DEF can result in:
Increased Emissions: Reduced NOx conversion efficiency.
Check Engine Lights and Fault Codes: Triggering limp mode.
Damage to SCR System Components: Corrosion, clogging, or sensor failure.
Using poor-quality or contaminated DEF can also void vehicle warranties and lead to costly repairs.
Knowing when a DEF sensor might be malfunctioning helps prevent long-term damage:
Check Engine Light Is On
DEF Warning on Dashboard
Abnormal SCR Behavior
Unexpected Fuel Consumption Increase
Frequent Regeneration Cycles
If cleaning or testing confirms that the sensor is faulty, replacement may be necessary.
Screwdrivers or socket set
OBD-II scanner
OEM replacement sensor
Disconnect the battery.
Remove access panels to the DEF tank.
Disconnect wiring harness and mounting screws.
Replace with new sensor.
Reconnect and reassemble.
Use OBD-II tool to clear any DTCs.
Always Use Certified DEF Fluid: Ensure it meets ISO 22241 standards.
Store DEF Properly: Avoid temperature extremes.
Inspect Sensor Periodically: Especially in high-mileage vehicles.
Keep DEF Tank Clean: Prevent contamination from entering.
A DEF quality sensor is a vital part of the modern diesel emission control system. From ensuring legal compliance to maintaining engine efficiency, the DEF sensor plays a central role in vehicle health and environmental protection. Understanding its function, location, testing methods, and maintenance is crucial for fleet managers, diesel technicians, and everyday vehicle owners alike.
By following best practices and performing regular diagnostics and maintenance, the sensor will continue to support optimal SCR system function and prolong the lifespan of your diesel engine.
