When a dashboard warning appears after poor fuel economy, limp mode, or unstable exhaust readings, the Exhaust gas temperature sensor is often blamed too quickly. In gasoline vehicles, passenger cars, and vans, the real fault may come from a damaged connector, heat-stressed wiring, poor sensor placement, or an engine condition that is pushing exhaust temperatures beyond normal range.
A proper repair starts by confirming the signal, checking live data, and deciding whether cleaning, wiring repair, or replacement is the safest fix.
A faulty Exhaust gas temperature sensor often appears first as a check engine light, reduced power, limp mode, poor fuel economy, abnormal regeneration behavior, increased emissions, or weak drivability under load. These symptoms are useful warning signs, but they do not prove the sensor itself has failed.
The same problem may come from a damaged connector, open circuit, restricted filter, exhaust leak, or abnormal air-fuel mixture. In gasoline passenger cars, the issue is often linked to catalyst protection, while vans used for delivery, towing, or stop-start driving may suffer more from heat cycling, vibration, and harness damage. A proper diagnosis should separate system symptoms from actual component failure before any replacement is made.
Use an OBD scanner or diagnostic tool to read stored fault codes and live temperature values. A fixed value such as -40°C often suggests an open circuit, disconnected plug, broken wire, or failed signal, while an unrealistically high fixed reading may point to a short circuit or internal sensor fault.
Live data helps confirm whether the sensor is responding correctly. During warm-up, the value should rise as exhaust temperature increases. If the reading stays frozen, jumps suddenly, or differs greatly from nearby sensors, the fault is likely related to the sensor, connector, or wiring.
Modern exhaust systems may use several EGT sensors in different positions, so the correct bank and location must be confirmed before ordering a passenger car EGT sensor or VAN exhaust temperature sensor. Replacing the wrong Exhaust gas temperature sensor is a common reason the fault returns.
Visual inspection should include the threaded bung, harness route, connector lock, heat sleeve, nearby brackets, soot marks, oil contamination, and overheated wiring. A loose connector, burned insulation, or harness touching the exhaust can create intermittent faults even after a new sensor is installed.
Fault clue | Likely cause |
-40°C live value | Open circuit, wiring break, disconnected plug, failed sensor |
Very high fixed value | Short circuit, signal fault, internal sensor failure |
Slow response | Aging probe, contamination, poor location |
Intermittent code | Vibration damage, loose connector, harness abrasion |
Code returns after replacement | Wrong sensor, wrong position, upstream engine fault |
Some Exhaust gas temperature sensor faults are repairable because the probe is not the actual weak point. Corroded pins, broken insulation, heat-damaged cable sections, loose plugs, poor strain relief, and harness abrasion can interrupt a signal that the ECU expects to be stable. Exhaust vibration can also stress the connector or cable if the harness is routed too tightly.
Repair quality matters because this is a temperature-critical signal, not a cosmetic wire repair. A poor crimp, exposed conductor, unsealed splice, or loose terminal can create an intermittent reading after the exhaust heats up. If the connector shell is brittle, melted, oil-soaked, or heat-distorted, replacing the connector or sensor assembly is usually more reliable than trying to save a damaged part.
Harness repair should stay outside the high-temperature probe area and must follow proper automotive wiring practices. Use heat-resistant insulation, sealed connections, and a routing path that avoids direct exhaust heat. If the cable is damaged close to the sensor body, replacement is the safer choice because the repair area will continue to face heat and vibration.
Cleaning may help when contamination sits on the external probe surface or around the connector, but it should never be treated as a universal fix. Light soot, road dirt, or salt around the mounting area can be removed carefully before inspection. Electrical contact cleaner may be used on the connector only when the connector is separated, inspected, and fully dried before reconnection.
Aggressive cleaning can create new damage. Wire brushing, scraping the probe, soaking the connector, or applying harsh chemicals can harm the sensing area, seals, or wiring. If the sensor is already slow to respond, cleaning may not restore the response speed needed by the ECU.
Internal sensing damage cannot be cleaned back to life. If the housing is cracked, the probe is bent, the harness is burned, or the live value remains implausible after wiring checks, replacement is safer. A slow Exhaust gas temperature sensor may also be near the end of its service life, even if it still produces a number on the scan tool.
Replace the Exhaust gas temperature sensor when the cable, connector, sensor housing, or probe shows physical damage. A damaged signal path can create unstable data even when the warning light appears only occasionally. Replacement is also justified when the reading remains frozen, the fault returns after clearing codes, or the sensor does not respond during warm-up.
Vehicle-specific resistance or signal tests should override guesswork because sensor designs do not all behave the same way. Some systems use thermocouple-style measurement, while others use resistance-based elements or signal-conditioned outputs. A sensor may look normal from outside and still produce a poor signal after heat soak.
The safest repair decision is based on circuit behavior, physical condition, and vehicle operating context. A passenger car used mostly for urban driving may show different fault patterns from a van that spends long hours under load. If the sensor has failed because of excessive exhaust heat, replacing the part without correcting the root cause may lead to another failure.
Let the exhaust system cool completely before touching the sensor or nearby pipework. Heat stored in a turbocharger housing, catalyst, or particulate filter can remain dangerous long after the engine is shut off. Disconnect the battery only when the service procedure requires it, then raise and support the vehicle safely if underside access is needed.
Confirm the exact Exhaust gas temperature sensor from service data before turning a wrench, especially when several similar connectors sit close together. Matching the connector by shape alone is risky because nearby sensors may have different calibration, probe length, or mounting position. Label the connector or take a reference photo if the area is crowded.
Removal can be difficult because the threaded area lives through corrosion, heat cycling, road splash, and vibration. Use the correct socket or crowfoot tool, keep the harness from twisting, and stop if the bung starts to deform. A damaged threaded port can turn a simple sensor replacement into exhaust repair work.
The correct replacement Exhaust gas temperature sensor is defined by fit and signal behavior, not appearance alone. Check the OE cross-reference, probe length, connector type, signal type, temperature range, harness length, and mounting position. A Gasoline Vehicle EGT Sensor may need fast thermal response near a close-coupled catalyst, while a VAN exhaust temperature sensor may need stronger harness protection because the vehicle works long hours under load.

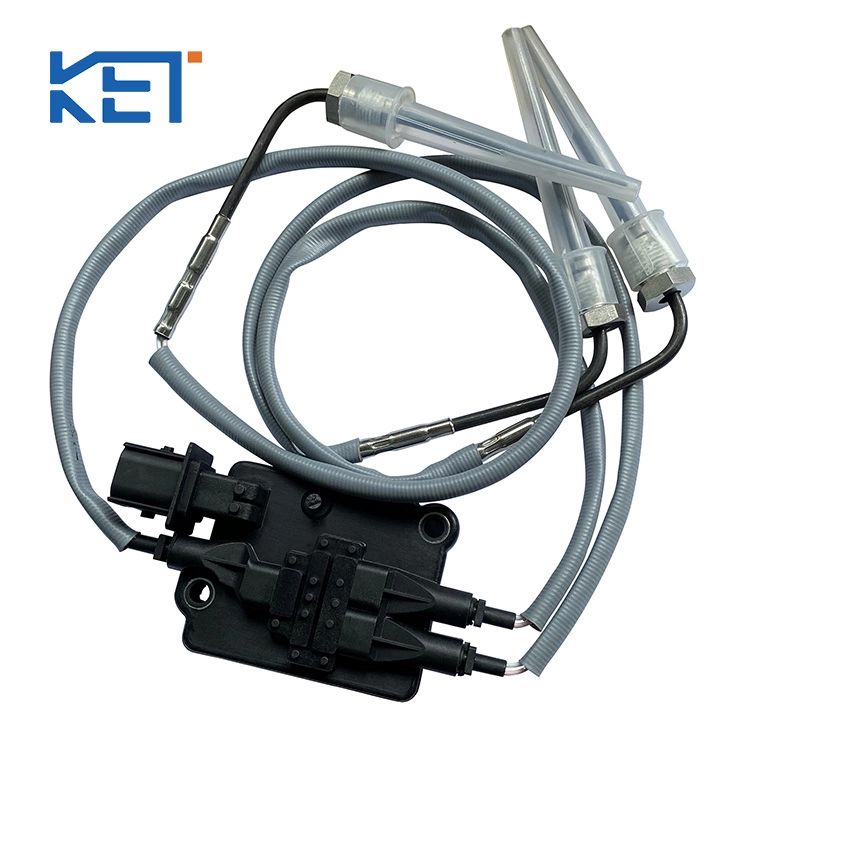

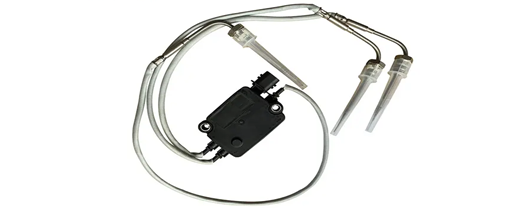

EQ-KET’s Exhaust Gas Temperature Sensor range can be used as a compatibility reference for different vehicle and exhaust requirements. Its fast-response model is designed for gasoline and diesel engines requiring rapid thermal feedback, including hybrid powertrains and turbocharged direct-injection systems. The product uses a micro-miniature RTD element, aluminum nitride substrate, and a T63 response below 30 ms.
Other EQ-KET models include CAN communication to the ECU, IP6K9K protection, customizable channels, N-type thermocouple options, and passenger car application coverage. These details matter because ECU communication, sealing level, probe design, and response speed affect whether the replacement sensor can provide stable temperature data in the correct exhaust position.
Start the threads by hand to avoid cross-threading the exhaust bung. Use the tightening torque specified by the vehicle or sensor data, and do not overtighten the probe because crushed threads or a stressed tip can shorten service life. If the sensor has pre-treated or coated threads, avoid adding unnecessary paste unless the service instruction requires it.
Cable routing then becomes the second half of the repair because a good Exhaust gas temperature sensor can still fail from heat-soaked wiring. Keep the cable away from hot exhaust parts, sharp edges, and moving components. Restore heat sleeves, clips, and strain relief so vibration does not load the connector.
Before tightening the new EGT sensor, confirm:
● Correct sensor position confirmed by service data
● Connector matches without force
● Harness length fits without tension
● Threads are clean and started by hand
● No excessive anti-seize on pre-coated threads
● Cable is routed away from heat, sharp edges, and moving parts
● Heat sleeve, clips, and strain relief are restored
● Final tightening follows the specified torque
After the repair, clear stored fault codes and observe live data before assuming the Exhaust gas temperature sensor job is complete. A healthy Exhaust gas temperature sensor should show a believable cold value, then rise smoothly as the engine warms and exhaust flow increases. During idle and light load, the reading should not remain frozen, jump randomly, or move in the opposite direction from nearby sensors.
A practical verification drive should include steady idle, light acceleration, deceleration, and enough load to confirm signal stability. For a passenger car EGT sensor, this may reveal whether a close-coupled catalyst signal reacts quickly enough during transient operation. For a van, low-speed vibration can expose a connector or harness fault that looks fine in the workshop.
The goal is not to chase a perfect temperature number. Exhaust temperature changes with engine load, fuel mixture, turbocharger operation, exhaust restriction, and aftertreatment condition. The better question is whether the reading follows engine behavior in a stable and believable way.
The ECU must receive a signal it can convert into useful temperature information. Many circuits work through resistance or voltage behavior, and the control unit converts the signal into a temperature value through internal logic. A believable signal means no immediate code reset, no limp mode, no warning lamp after a drive cycle, and no substitute value used for component protection.
Mechanical verification still matters. Check for an exhaust leak around the threaded port because escaping gas can affect measurement and may leave soot marks around the bung. Make sure the harness is not touching a heat shield edge or resting against the pipe after the engine moves under load.
Connector stability should also be checked after the engine has warmed up. Heat can soften cable insulation or reveal a loose terminal that looked acceptable when cold. If the fault returns only after driving, inspect the harness while considering vibration, heat expansion, and engine movement.
A repeated Exhaust gas temperature sensor failure can be a symptom of a hotter problem upstream. Abnormal air-fuel mixture, injection faults, turbocharger issues, exhaust restriction, aftertreatment faults, and genuine excessive exhaust temperature can all stress a new sensor. When the engine runs too hot, the sensor may be reporting a real problem rather than causing one.
If the same position fails again, the diagnosis should move beyond the part. The question becomes why that location is overheating, vibrating, or receiving a distorted gas flow. Replacing the sensor repeatedly without checking the engine condition is a repair loop, not a fix.
Fixing an Exhaust gas temperature sensor problem should begin with diagnosis, not immediate replacement. Checking fault codes, live temperature data, wiring condition, connector damage, and possible upstream engine issues helps prevent repeated failures and unnecessary parts replacement. For a Gasoline Vehicle EGT Sensor, passenger car EGT sensor, or VAN exhaust temperature sensor, correct specification and careful installation are just as important as the sensor itself.
Zhejiang Kreation Electronic Technology Co., Ltd. provides EGT sensor options designed to support stable temperature monitoring, helping vehicles maintain safer exhaust control, reliable ECU feedback, and more efficient repair outcomes.
A: Common signs include a check engine light, poor fuel economy, reduced engine power, limp mode, abnormal regeneration, or exhaust temperature readings that stay fixed or look unrealistic.
A: Light soot or dirt on the probe or connector area may be cleaned carefully, but internal sensor failure, damaged wiring, cracked housing, or unstable readings usually require replacement.
A: Use a diagnostic scanner to read fault codes and live temperature data. A frozen value, no change during warm-up, or a reading far from nearby sensors needs further checking.
A: Short-distance driving may be possible, but it is not recommended. A faulty sensor can affect fuel control, catalyst protection, emissions performance, and engine safety systems.
A: Repeat failure is often caused by heat-damaged wiring, vibration, wrong sensor specification, poor cable routing, exhaust leaks, or an upstream engine issue creating excessive exhaust temperature.
