When a truck struggles with repeated regeneration warnings, poor fuel efficiency, or unexpected power derating, exhaust temperature data is often part of the story. An Exhaust gas temperature sensor does more than report heat; it gives the ECU a live reading of combustion and aftertreatment conditions under changing load.
For diesel engines, turbocharged systems, and both heavy-duty and light-duty trucks, that signal helps control DPF regeneration, protect catalysts and turbochargers, and identify abnormal operating conditions before they become costly failures.
An Exhaust gas temperature sensor starts with a probe installed directly in the exhaust path. Hot exhaust gas passes around the sensing tip, and the sensing element converts that heat condition into an electrical signal. In many high-temperature applications, a Thermocouple EGT Sensor is preferred because the measuring point can tolerate severe exhaust heat, vibration, and fast temperature swings. The driver never sees this raw signal, but the ECU reads it continuously as part of the engine’s operating picture.
The important point is not the physics alone. In this role, an Exhaust gas temperature sensor only has value when its signal is stable, readable, and fast enough for the control unit. Modern engine platforms may use analog voltage, digital output, CAN communication, or other ECU-compatible signal formats. A wide-range EGT sensor design may use an N-type thermocouple probe, CAN communication, IP6K9K sealing, and configurable channels to support different vehicle or engine-control layouts.
Exhaust heat changes quickly during cold start, idle, acceleration, towing, hill climbing, DPF regeneration, and high-load operation. Engine speed or fuel quantity can suggest what might be happening, but they cannot fully replace a real exhaust temperature reading. Oxygen readings, boost pressure, and fuel maps also provide useful context, yet exhaust temperature reflects the combined result of combustion, load, airflow, and aftertreatment activity.
That feedback is why the Exhaust gas temperature sensor is more than a measuring part. The ECU uses the data to decide whether conditions are safe, efficient, or suitable for emissions-control actions. Fixed assumptions would be too crude because two engines at the same RPM can have very different exhaust heat under different load, altitude, payload, or regeneration conditions. For the ECU, the Exhaust gas temperature sensor is the live thermal reference that makes this correction possible. Real-time temperature feedback lets the management system react to the actual exhaust stream instead of relying only on preset maps.
Exhaust heat → EGT sensor probe → signal processing → ECU/ECM → emissions control / protection / diagnostics
An Exhaust gas temperature sensor is critical because aftertreatment components only work properly inside suitable temperature windows. A DPF needs enough heat during regeneration to oxidize accumulated soot. If temperature is too low, soot burn may be incomplete; if it rises too high, the filter substrate and surrounding parts can face unnecessary thermal stress. SCR systems also depend on temperature awareness because dosing strategy and conversion performance change as exhaust conditions move from cold to fully active.
Catalysts and gasoline particulate filters add another layer. During warm-up, the ECU wants the aftertreatment system to reach effective operating temperature as soon as practical. During heavy load, the same control system must avoid overheating sensitive components. This is where the Exhaust gas temperature sensor becomes a control input rather than a simple warning part. Accurate exhaust temperature measurement supports aftertreatment control and helps the engine reduce NOx and particulate matter under changing operating conditions.
System Area | What the Sensor Helps Monitor | Why It Matters |
DPF | Regeneration temperature | Helps avoid incomplete soot burn or overheating |
SCR | Catalyst inlet or exhaust temperature | Supports emissions-control decisions |
Turbocharger area | High-load exhaust heat | Reduces the risk of thermal stress |
GPF/catalyst | Temperature rise during operation | Protects sensitive aftertreatment parts |
The demand is higher in commercial vehicles because exhaust systems spend more time under sustained thermal load. A heavy-duty truck EGT sensor may operate through long uphill routes, heavy payloads, extended idling, stop-and-go delivery cycles, and repeated DPF regeneration events. These conditions are not short spikes; they are duty-cycle patterns. Over time, even small errors in temperature feedback can affect regeneration quality, fuel efficiency, fault detection, and component durability.
A light-duty truck exhaust temperature sensor may see less continuous load, but the control requirement does not disappear. Modern light-duty engines still need accurate temperature readings to manage catalysts, particulate filters, turbocharger protection, and emissions behavior during city driving or towing. The difference is intensity: heavy-duty applications usually demand stronger vibration resistance, longer design life, broader operating range, and better stability during repeated high-temperature events.
An Exhaust gas temperature sensor also helps operators avoid misreading an aftertreatment issue. A regeneration fault, for instance, may look like a filter problem, but the root cause can be poor temperature feedback, incorrect sensor placement, wiring damage, or a delayed signal. A well-matched Exhaust gas temperature sensor therefore supports both control accuracy and service efficiency before unnecessary parts are replaced.
Exhaust heat can damage a turbocharger, exhaust manifold, catalyst, wiring harness, DPF, SCR catalyst, or nearby shielding when it exceeds the safe operating range for too long. The ECU uses Exhaust gas temperature sensor feedback to identify that risk before it becomes visible damage. In severe cases, the engine may reduce fueling, adjust boost strategy, trigger a warning, store a fault code, or limit power to protect hardware. That response may feel inconvenient to the driver, but it can prevent a much more expensive failure.
An Exhaust gas temperature sensor is especially valuable because thermal damage is often cumulative. One short peak may not destroy a part, while repeated overheating can fatigue metal, degrade coatings, embrittle wiring insulation, or shorten catalyst life. For turbocharged engines, upstream temperature can rise fast during aggressive acceleration or high-load climbing. For diesel aftertreatment, regeneration adds controlled heat that must stay within a safe window.
Sensor construction determines whether readings remain trustworthy in heat, vibration, moisture, soot, sulfur-rich exhaust, and corrosive gas. A stable sensor must keep the sensing element protected while still responding fast enough to changing exhaust flow. If the Exhaust gas temperature sensor reacts too slowly, the ECU may receive yesterday’s temperature condition instead of the current one. If the signal is noisy, the control system may hesitate, overcorrect, or set diagnostic faults.
For severe-duty applications, the useful question is not only “Can the sensor measure high temperature?” It is “Can the sensor keep measuring accurately after repeated thermal cycling?” A high-temperature EGT sensor for heavy-duty diesel engines, turbocharged engines, SCR systems, and severe exhaust environments may use an Inconel 625 sheath, wide temperature coverage, rapid-response design, and CAN communication to maintain stable feedback for the ECU.
An Exhaust gas temperature sensor with suitable response time and durability gives the ECU a better chance to act before heat becomes damage. Wide temperature range helps during cold start and full-load operation. Strong sealing and vibration resistance matter because a good signal depends on both the sensing element and the mechanical structure around it.
The same Exhaust gas temperature sensor can support different decisions depending on where it is installed. A pre-turbo sensor usually sees hotter and more immediate exhaust energy, so the reading can help monitor combustion load and turbocharger stress. This position is useful when the system needs early warning of extreme heat before the turbine absorbs part of that energy. Because the probe sits in a harsher location, response stability and material strength become more important.
A post-turbo sensor tells a different story. Once exhaust gas passes through the turbine, some thermal and pressure energy has already been converted into mechanical work. The reading may be lower, but it is still useful for system monitoring and downstream aftertreatment decisions. In both positions, an Exhaust gas temperature sensor must be interpreted by location, not by the number alone. Comparing location context prevents a common mistake: treating all EGT readings as if they describe the same physical condition.
Upstream and downstream sensors around the DPF, SCR catalyst, or oxidation catalyst help the control system understand how heat moves through the exhaust system. A sensor before a DPF can confirm whether incoming temperature is suitable for regeneration. A sensor after the DPF can help detect whether the expected temperature behavior is actually occurring. Around an SCR catalyst, temperature readings help the system avoid poor conversion conditions and protect the catalyst from overheating.
Sensor Position | Main Reading Purpose | Typical Use |
Pre-turbo | Highest-load exhaust heat | Turbo and engine protection |
Post-turbo | Exhaust heat after turbine | System monitoring |
Before DPF/catalyst | Temperature entering aftertreatment | Regeneration and conversion control |
After DPF/catalyst | Temperature leaving aftertreatment | Efficiency and fault monitoring |
Flexible installation can include positions before or after the turbocharger, before the DPF, or after the particulate filter. That flexibility matters because sensor placement should match the control objective, not only the available mounting point. A sensor selected for one position may not always be suitable for another if the temperature range, probe length, response time, or signal format does not match the system requirement.
A failed Exhaust gas temperature sensor does not simply remove one dashboard number. It weakens the ECU’s view of aftertreatment temperature, component protection, regeneration conditions, and thermal risk. When temperature data becomes inaccurate, the engine may still run, but emissions control and protection strategies become less reliable. This is why sensor faults often appear as broader engine or aftertreatment complaints.
Common signs include:
● Check engine light or exhaust-system warning
● Failed, delayed, or frequent regeneration
● Reduced power or limp mode
● Poor fuel efficiency during normal routes
● Repeated aftertreatment-related fault codes
● Abnormal temperature readings during diagnostics
A technician should avoid assuming every DPF or SCR complaint starts with the filter or catalyst. Wiring damage, connector corrosion, soot buildup near the probe, poor installation depth, or a slow sensor can all distort the reading. The practical role of the Exhaust gas temperature sensor becomes obvious when it fails: without reliable feedback, the ECU loses confidence in both emissions control and hardware protection.
Replacement should be based on specification, not appearance alone. A matching thread or connector does not guarantee that the sensor has the correct range, response behavior, probe length, signal output, or environmental protection. The wrong Exhaust gas temperature sensor may fit physically but still report temperature in a way the ECU cannot interpret correctly.
Before choosing a replacement, check:
● Temperature range and accuracy
● Probe type and insertion depth
● Thread size and mounting position
● Connector and wiring layout
● Output signal and ECU compatibility
● Response time
● Waterproof and vibration rating
● Suitability for heavy-duty or light-duty use

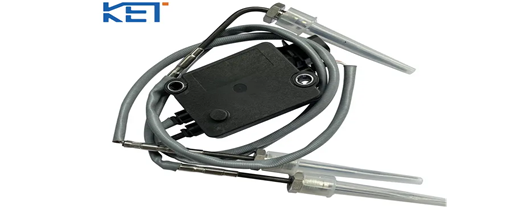

A wide-range sensor used for modern exhaust monitoring may combine an N-type thermocouple probe, CAN output, IP6K9K rating, customizable channels, specified detection accuracy, and defined response characteristics. These details are worth checking before replacement because they affect whether the sensor can support the ECU’s control logic under real operating conditions.
An Exhaust gas temperature sensor gives the ECU the temperature feedback needed to manage DPF regeneration, SCR performance, catalyst protection, turbocharger safety, and fault detection. Whether used as a Thermocouple EGT Sensor, a heavy-duty truck EGT sensor, or a light-duty truck exhaust temperature sensor, its value depends on accurate readings, stable response, and correct placement.
Zhejiang Kreation Electronic Technology Co., Ltd. provides EGT sensor options designed to support reliable exhaust temperature monitoring, helping engine systems operate more safely, efficiently, and consistently under changing load conditions.
A: Yes, light soot or dry contamination may be wiped from the probe carefully. Heavy corrosion, damaged wiring, or unstable readings usually require replacement.
A: Use a dry, lint-free cloth for the probe. Avoid aggressive solvents, wire brushes, or scraping tools because they may damage the sensing element.
A: Cleaning may help if the issue is surface contamination. Replace the sensor if fault codes return, readings are erratic, or the connector is damaged.
A: Yes. Incorrect temperature readings can disrupt DPF regeneration and SCR control, causing warning lights, poor efficiency, or repeated aftertreatment fault codes.
A: Marine sensors may face moisture, salt, and corrosion. Cleaning should be gentle, and any cracked insulation, rusted threads, or unstable readings need inspection.
A: The engine may still run, but emissions control and component protection can be unreliable. Continued driving may cause regeneration problems or reduced engine power.
