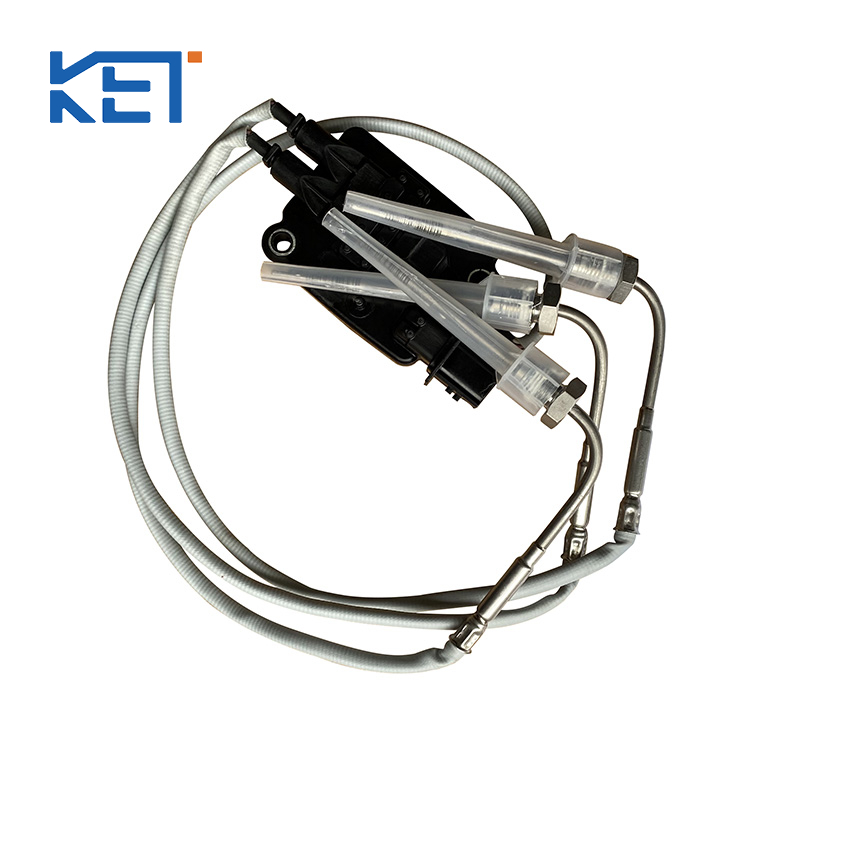

Operating an engine or turbine near its thermal limits leaves zero margin for sensor failure. Choosing between a standard wide-range sensor and a specialized high-temperature variant directly impacts process safety and component lifespan.
Modern emission controls and precise performance tuning require continuous exhaust gas temperature tracking. Yet, procurement processes frequently stall during component specification. Engineering teams face a difficult choice. They must decide whether to prioritize broad-spectrum accuracy—capturing everything from frigid cold starts to demanding high loads—or to prioritize extreme peak-temperature survivability.
This guide breaks down the critical engineering trade-offs, material constraints, and system integration variables. We help you specify the exact monitoring architecture required for your operational envelope. You will learn how to balance thermal mass, response latency, and metallurgical durability effectively. Ultimately, this ensures you prevent catastrophic failures and optimize overall equipment efficiency.
A Wide Range EGT Sensor delivers linear, highly accurate readings across a broad operational spectrum, ideal for dynamic environments like modern diesel emissions systems.
A dedicated High-Temperature Sensor sacrifices some low-end resolution and response time to survive sustained extreme heat (e.g., heavy industrial gas turbines or aviation overlimit events).
Sensor selection must balance thermal mass, response latency, and metallurgical durability against the specific failure modes of your equipment.
Over-specifying temperature limits can introduce thermal drift at normal operating ranges, while under-specifying leads to catastrophic sensor burnout during thermal spikes.
Defining your operational baseline constitutes the critical first step in sensor selection. Procurement teams frequently face a complex dilemma. They must accurately define the actual necessity of high-temperature resilience versus broad-spectrum visibility. Making the wrong technical choice introduces massive operational risks to the entire exhaust system.
The "one size fits all" approach simply fails in modern thermal management. Standard exhaust environments require highly precise tracking. You need accurate data logging from ambient cold starts up to standard operating limits. This broad visibility guarantees correct fuel mixtures and emissions compliance. Conversely, extreme environments experience sustained baseline heat. This intense thermal load rapidly degrades standard probe materials, leading to inevitable structural failure.
To navigate this engineering challenge, we must establish defined operational thresholds. Understanding these distinct limits helps engineering teams match internal probe metallurgy to actual exhaust conditions. We categorize these thermal zones into two distinct operational envelopes.
Operational Temperature Thresholds and Applications
Operational Envelope | Temperature Range | Typical Application Scenarios |
|---|---|---|
Wide-Range Operations | -40°C to ~900°C | Standard automotive, commercial transport, and standard Diesel EGT Sensor implementations. |
High-Temperature Operations | Sustained >900°C (Peaks 1100°C+) | Aerospace turbines, motorsport exhaust headers, and heavy industrial power generation. |
A standard vehicle requires continuous monitoring across fluctuating conditions. It relies on a sensor optimized for mid-range changes. Heavy industrial turbines require entirely different parameters. They sit at maximum thermal capacity for days. They demand materials built strictly for survival.
Understanding internal sensor architectures helps you select the right measurement tool. You must evaluate what happens inside the probe housing. Sensor mechanics strictly dictate both physical durability and signal accuracy.
A typical Wide Range EGT Sensor utilizes RTDs (Resistance Temperature Detectors), specific NTC/PTC thermistors, or Type-K thermocouples. These distinct mechanisms excel in highly variable thermal environments.
Strengths: They offer high linearity across rapidly fluctuating temperatures. They provide exceptional, rapid response times. They deliver excellent signal accuracy at mid-range temperatures. This precise accuracy is absolutely critical for tracking modern DPF (Diesel Particulate Filter) regeneration cycles.
Limitations: They suffer severe metallurgical degradation when repeatedly exposed to absolute peak thermal limits. Sustained extreme heat induces permanent calibration drift. The internal wires slowly oxidize, compromising signal integrity over time.
Extreme environments demand uniquely rugged solutions. This heavy-duty architecture relies on advanced thermocouple types like Type N, S, or B. Some advanced designs utilize specialized optical sensing methods. Manufacturers typically encase these sensitive elements in heavy Inconel alloys or solid ceramic sheaths.
Strengths: They provide vital immunity to oxidation during sustained extreme heat. They firmly prevent structural failure and melting. Most importantly, they ensure your control system never experiences sudden EGT overlimit blindness during an emergency.
Limitations: Heavier protective sheathing drastically increases the probe's thermal mass. Higher thermal mass creates much slower response times. Furthermore, they output lower millivolt signals at lower temperatures. This low output noticeably reduces low-end measurement accuracy.
Engineers must weigh competing variables carefully. You cannot achieve instant response times alongside extreme heat immunity. The fundamental laws of thermodynamics force specific compromises. We must evaluate three main operational dimensions.
Thermal mass represents your most significant engineering trade-off. Thicker sheathing protects internal sensing wires from melting. However, this same thick metal shield dampens reaction speed. The sensor reacts much slower to sudden temperature spikes. This latency hides dangerous micro-events from your control unit.
You must also critically assess linearity across the entire operational band. A standard Wide-Range Sensor maintains reliable, flat calibration across a massive 1000°C span. A high-temperature alternative usually optimizes its signal output only for the top 20% of its operational band. It sacrifices bottom-end resolution to maintain high-end accuracy.
Physical vibration frequently destroys fragile probes before heat does. Aircraft and heavy engines subject sensors to intense, high-frequency vibrations. These harmonic stresses easily fracture the brittle ceramic components commonly used in high-temp models.
Environmental contamination poses another severe threat. Standard probes suffer heavily from caustic sulfur and thick soot contamination inside diesel exhaust streams. When deploying an Industrial EGT Sensor, you often need specialized shielding. This dense shielding prevents aggressive chemical oxidation and structural pitting.
Common Mistakes in Durability Planning:
Ignoring harmonic resonance frequencies during engine testing.
Placing unshielded standard probes downstream of heavy soot generators.
Assuming stainless steel housings survive beyond 900°C without scaling.
Never ignore wire harness compatibility limits. A rugged probe proves entirely useless if the attached wiring harness degrades under ambient radiated heat. Always evaluate the PTFE or fiberglass insulation limits near the installation port.
Controller calibration also dictates your measurement success. Ensure your ECU (Engine Control Unit) or PLC (Programmable Logic Controller) interprets the specific voltage curves correctly. For instance, programmers must actively adjust software logic tables to handle NTC versus PTC signal inversions safely. Proper signal processing eliminates ghost readings and nuisance alarms.
Installing the wrong probe introduces severe, hidden operational risks. Equipment damage often occurs silently before a total failure finally triggers a dashboard alarm. You must anticipate these specific failure modes to protect your machinery.
Thermal Drift
Thermal drift remains a highly dangerous hidden risk. A standard sensor survives a momentary high-temp event but shifts its internal resistance calibration permanently. It begins feeding slightly false data to the control unit moving forward. The ECU blindly trusts this data. It injects the wrong fuel mixture, slowly damaging engine internals over thousands of hours.
Sluggish Transient Response
Some teams mistakenly install heavy-duty, high-temperature probes in highly dynamic automotive applications. They assume bigger is always better. The massive thermal mass causes severe sensor lag. Consequently, the ECU completely misses brief, engine-damaging thermal spikes during rapid acceleration. The engine suffers micro-detonations while the sensor reports normal temperatures.
Catastrophic Probe Shearing
Pushing standard, thin-walled sensors beyond their metallurgical limits invites total disaster. Sustained over-temperature exposure causes the metal sheath to embrittle. The probe physically melts or snaps off under exhaust pressure. Broken metal pieces shear off and immediately destroy the expensive downstream turbine housing blades.
Establishing a highly structured procurement process prevents costly specification errors. Do not rely on guesswork. Use this defined, four-step logic path to finalize your hardware requirements effectively.
Define the True Peak: Analyze your historic telemetry data thoroughly. Find the absolute maximum exhaust temperature recorded. Identify the precise duration of those heat peaks. You must distinguish between a harmless, two-second transient spike and a damaging, sustained heavy load.
Prioritize the Control Loop: Determine your primary data goal. If the system uses EGT primarily to trigger lower-temp emissions controls, prioritize a fast-reacting Wide-Range Sensor. If EGT acts as a critical safety shutoff for turbine health, you must prioritize a rugged High-Temperature Sensor.
Validate the Ecosystem: Check your existing hardware architecture. Verify your telemetry hardware, wiring harnesses, and ECU firmware tables. They must perfectly support the exact thermocouple voltage or thermistor resistance type you plan to purchase. Mismatched hardware causes instant signal errors.
Request Data Sheets: Demand comprehensive MTBF (Mean Time Between Failures) documentation from your manufacturers. Ensure the reliability data reflects your specific temperature baseline. Do not accept generic charts detailing just the sensor's theoretical maximum limit.
There is no universal best choice in thermal monitoring architecture. The final decision relies entirely on the precise thermal demands and control loop requirements of your specific application. Engineering teams must weigh response speeds against raw survivability carefully.
Do not over-specify temperature ratings unnecessarily. Upgrading temperature limits usually costs you valuable response time. Only choose a high-temperature variant if historical operational data proves standard limits will be exceeded regularly. Protect your transient response speeds wherever safely possible.
Engage directly with sensor engineering teams early in your design project. Map out specific exhaust temperature profiles together. Run thorough physical durability tests alongside signal latency checks before finalizing technical specifications. Proper thermal planning guarantees system safety and ensures uninterrupted operational performance.
A: Yes, briefly, but repeated exposure causes cumulative thermal drift and alters the sensor's baseline accuracy. The internal wire metallurgy degrades under extreme stress. Over time, the ECU receives incorrect temperature readings, which compromises engine safety and automated emissions control logic.
A: Thicker housings (common in high-temp sensors) increase thermal mass, which delays the sensor's ability to report rapid temperature changes accurately. This extra mass protects internal components but causes sluggish transient responses. The control unit might miss dangerous thermal spikes during sudden acceleration.
A: Focus on resistance curves and resolution requirements at specific target temperatures where the control system needs the highest accuracy. NTC variants often provide better signal resolution exactly where engineers need precise data to manage sensitive DPF regeneration cycles effectively.
A: Oxidation of the internal elements leading to an open circuit, or thermal drift that causes premature or delayed DPF regeneration cycles. When the sensor fails, soot quickly accumulates. This accumulation chokes the exhaust system and forces the vehicle into a forced limp mode.
