Modern emission control systems use multiple sensors to monitor exhaust health. This complexity makes it difficult to pinpoint the exact component triggering a fault code. You might stare at a dashboard warning light feeling completely frustrated. We understand this diagnostic challenge well. Finding the correct Exhaust Gas Temperature Sensor Location is critical. Improper identification often leads to replacing the wrong part entirely. This mistake wastes valuable diagnostic time. It also risks severe damage to expensive emission control systems. We created this article to solve that exact problem. This guide provides a precise roadmap to help you succeed. You will learn how to accurately identify, safely access, and properly evaluate a replacement sensor. We will show you how to restore vehicle performance and maintain strict emission compliance effectively.
Modern diesel and high-performance gas engines typically feature three to four distinct sensor positions along the exhaust stream.
Identifying the exact exhaust gas temperature sensor location requires cross-referencing your specific OBD-II diagnostic trouble code (e.g., "Bank 1, Sensor 2").
Removing these sensors carries a high risk of thread galling due to extreme heat cycling; proper extraction techniques are critical.
Selecting a replacement requires evaluating exact harness lengths, connector types, and thermal response rates to ensure communication with the Engine Control Unit (ECU).

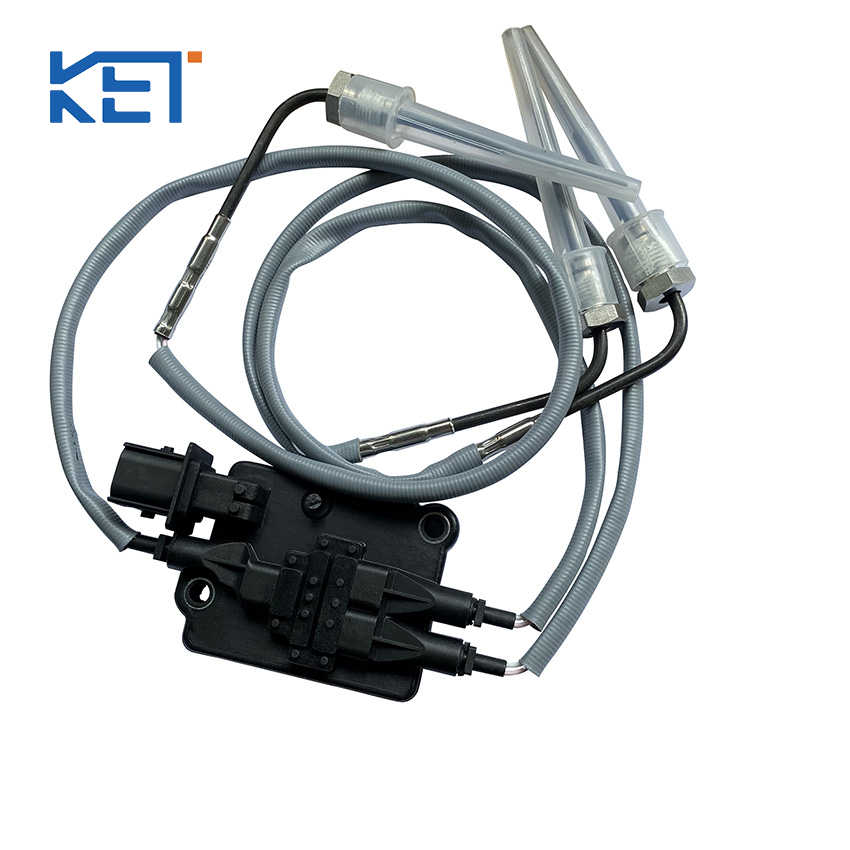

Clarify the problem first. Technicians rarely deal with just one sensor. Modern vehicles utilize a complex network of probes. This is especially true when diagnosing a Diesel EGT Sensor array. Manufacturers place these components strategically along the exhaust pipe. They monitor heat at various chemical reaction stages. Let us break down the standard positions you will encounter.
Position 1 (Pre-Turbo / Exhaust Manifold): This probe monitors raw combustion temperatures directly from the engine block. It protects the sensitive turbocharger from thermal overload. High heat can easily destroy turbo bearings. The Engine Control Unit (ECU) monitors this data constantly. It will adjust fueling rates to lower temperatures if necessary.
Position 2 (Pre-DOC / Diesel Oxidation Catalyst): You will find this unit located just after the turbo downpipe. It measures gases entering the initial catalytic stage. The DOC requires specific heat levels to break down unburned hydrocarbons. If this probe fails, the ECU cannot verify catalyst efficiency.
Position 3 (Pre-DPF / Diesel Particulate Filter): Engineers position this probe right before the DPF. It ensures exhaust temperatures remain high enough for active regeneration. The DPF traps harmful soot particles. The system must burn off this soot periodically. Accurate heat measurement prevents catastrophic filter clogging.
Position 4 (Pre-SCR / Selective Catalytic Reduction): You will locate this component near the tailpipe end. It monitors the final NOx reduction efficiency. The SCR system injects diesel exhaust fluid (DEF) to neutralize harmful emissions. This probe confirms the optimal temperature for that specific chemical reaction.
Sensor Position and Function Mapping
Sensor Position | Physical Location | Primary Diagnostic Function |
|---|---|---|
Position 1 | Pre-Turbo / Exhaust Manifold | Monitors raw combustion heat; protects turbocharger bearings. |
Position 2 | Pre-DOC (Downpipe) | Measures gas temperature entering the oxidation catalyst. |
Position 3 | Pre-DPF | Verifies adequate heat for active soot regeneration. |
Position 4 | Pre-SCR (Tailpipe End) | Monitors final NOx reduction chemical efficiency. |
Translating scanner data is your next vital step. The "Bank and Sensor" nomenclature confuses many mechanics. We need to decode this language clearly. A standard OBD-II scanner will display codes like "P2033 Exhaust Gas Temperature Sensor Circuit High Bank 1 Sensor 2." You must map this code to a physical spot.
First, understand Bank 1 versus Bank 2. Inline engines make this easy. They only utilize Bank 1. V-block engines split the exhaust path. Bank 1 always contains cylinder number one. You must check your service manual to find cylinder one. Bank 2 sits on the opposite side of the engine block.
Next, look at the sequencing numbers. Sensor 1, 2, 3, and 4 follow a strict rule. The numbering sequence always moves downstream. It starts at the engine block. It ends near the tailpipe. Sensor 1 is closest to the manifold. Sensor 4 is furthest away.
Finally, cross-reference your findings. You should check manufacturer Technical Service Bulletins (TSBs). You can also search the NHTSA databases. Certain vehicle batches have documented high-failure locations. Heavy-duty trucks often exhibit specific component failure patterns. Sometimes a failed EGT Sensor is part of a known factory recall. Checking TSBs saves hours of misdiagnosis.
Finding the component is only half the battle. Physical access often proves extremely difficult. Sensors frequently hide tucked against firewalls. You might find them squeezed inside tight transmission tunnels. Marine engine bulkheads present similar spatial challenges. You will need patience and good lighting to reach them safely.
You must also understand the seizing risk. Extreme thermal cycling causes threads to bind tightly. The exhaust pipe heats up and cools down thousands of times. Removing a sensor cold often ends in disaster. You might strip the exhaust bungs entirely. You could even snap the delicate probe off inside the pipe.
Follow these professional extraction best practices to avoid severe damage:
Apply high-quality penetrating fluid to the threads over multiple days.
Use localized heat from an induction heater to expand the surrounding metal safely.
Utilize specialized slotted EGT sockets to grip the hex nut without damaging the wire harness.
Work the sensor back and forth gently; never force it heavily in one direction.
Installation protocols require equal care. You must apply a high-temperature anti-seize compound to the new threads. However, you must avoid getting any paste on the probe tip. Contaminating the tip ruins its sensing ability immediately. Finally, always use a calibrated torque wrench. Proper torque prevents future thread galling and ensures a perfect exhaust seal.
Choosing the right replacement part matters immensely. You must frame your buying decision around durability, ECU compatibility, and precise fitment. You need a reliable Temperature Sensor to keep the engine running smoothly.
OEM Sensors offer exceptional reliability. Factory parts guarantee exact thermal impedance curves. They provide proper wire harness shielding against electrical noise. You will pay a premium price for this peace of mind. However, OEM units ensure seamless communication with your vehicle computer.
Aftermarket Alternatives present a viable, cost-effective option. You need a solid framework for evaluating third-party parts. Look for ISO-certified manufacturers. Demand exact-match pigtail lengths. Verify the inclusion of OEM-grade connector housings. High-quality aftermarket brands often reverse-engineer factory flaws to build better components.
You must avoid universal "cut-and-splice" kits entirely. These altered resistance paths send false readings to the ECU. Spliced wires degrade quickly under heavy vibration. False data triggers premature or delayed DPF regeneration cycles. This severely damages your emission control system over time.
OEM vs. Aftermarket Sensor Comparison
Evaluation Criteria | OEM Sensors | Premium Aftermarket | Universal Kits (Avoid) |
|---|---|---|---|
Thermal Accuracy | Exact factory impedance | Matches factory specs | Inconsistent readings |
Fitment | Perfect plug-and-play | Direct fit guaranteed | Requires wire splicing |
Durability | High reliability | Often improves on OEM flaws | Prone to vibration failure |
Prevent unnecessary spending by performing pre-purchase verification. You must confirm the component is actually dead. Sometimes, a simple wiring issue mimics a failed unit. We highly recommend thorough electrical testing first. Testing the Aftertreatment Sensor prevents parts-cannon diagnostics.
Multimeter testing evaluates the internal thermistor directly. Follow these technical steps:
Set your digital multimeter to measure resistance (Ohms).
Disconnect the sensor harness and probe the terminal pins.
Test the base resistance at standard room temperature.
Apply a safe heat source (like a heat gun) to the probe tip.
Watch the multimeter display closely. The resistance should change smoothly as heat increases.
If the resistance jumps erratically or shows an open circuit, the unit is dead. Next, you must perform a comprehensive wiring harness inspection. Check the main loom for chafed wires. Look closely for melted connector plastic. Inspect all nearby engine grounding points. Poor grounds cause voltage drops. These drops trigger false OBD-II codes.
If your testing confirms a failure, take shortlisting actions immediately. Record your Vehicle Identification Number (VIN). Note the exact sensor position (e.g., Bank 1, Sensor 3). Source a direct-fit replacement from a reputable supplier. Do not guess the part number. Precision matters greatly here.
Finding the exact exhaust location is only the first step in a successful repair. Modern emission systems demand precision and patience. Accurate diagnosis prevents costly mistakes and wasted effort. Careful extraction techniques protect your expensive exhaust components from permanent damage. Selecting a high-quality replacement ensures long-lasting performance and uninterrupted ECU communication. We urge you to handle these sensitive parts carefully. Always consult your vehicle-specific service manual for exact routing diagrams. Reach out to a certified parts distributor with your VIN. They will validate the exact fitment for your engine.
A: A 6.7L Cummins features multiple probes along the exhaust stream. Sensor 1 sits in the exhaust manifold pre-turbo. Sensor 2 is located before the Diesel Oxidation Catalyst (DOC). Sensor 3 rests before the Diesel Particulate Filter (DPF). Sensor 4 mounts before the Selective Catalytic Reduction (SCR) unit. Always check your specific model year for minor layout changes.
A: Marine applications differ significantly due to unique packaging constraints. You will usually find marine sensors mounted directly onto the exhaust manifold or integrated into the waterbox. These environments expose sensors to severe moisture and vibration. Accessing them often requires navigating cramped engine bulkheads. Always consult your marine engine schematic to locate them.
A: No. Bypassing this component poses severe mechanical and legal risks. The Engine Control Unit relies on these readings to manage critical emissions processes. Tricking the system causes unchecked heat, leading to complete DPF meltdown. It also triggers severe engine derate modes. Modifying emissions equipment violates federal laws entirely.
A: Manufacturers frequently update part designs to improve reliability. A different color connector usually indicates a factory supersession. Engineers use unique keyway indexing and specific colors to ensure technicians plug the right sensor into the correct harness. If the part number crosses correctly to your VIN, the color change is perfectly normal.
