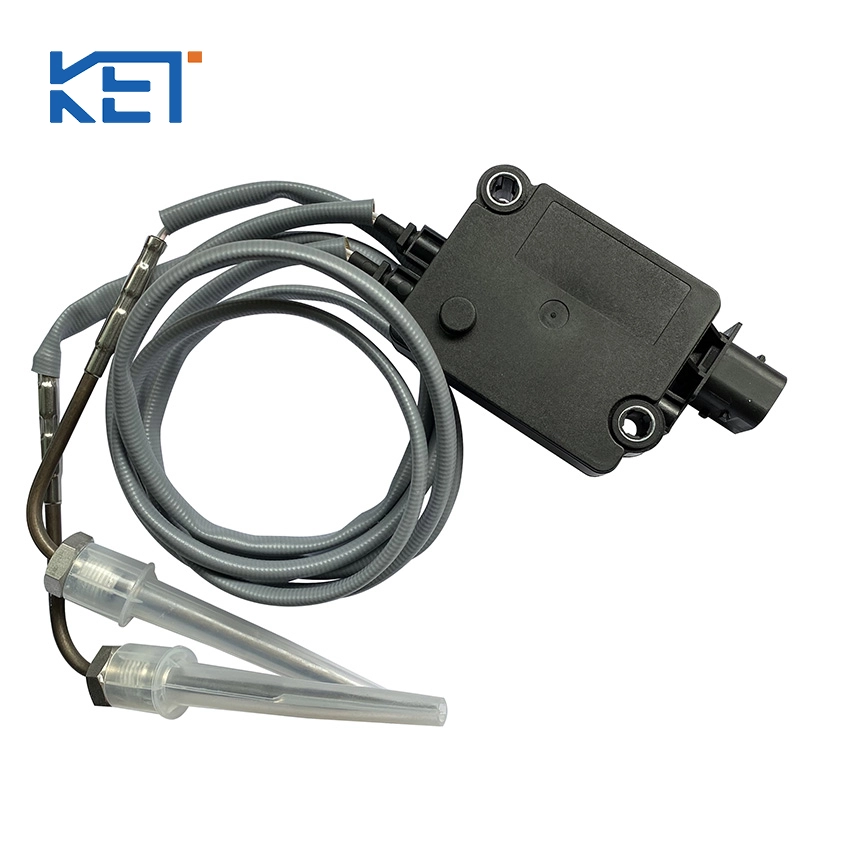

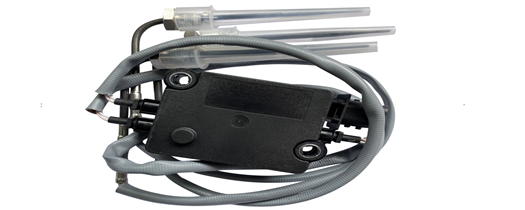

How to fix an exhaust gas temperature sensor​

Introduction

When an aftertreatment warning appears or a diesel engine drops into limp mode, replacing the Exhaust gas temperature sensor may look like the quickest fix. In practice, the fault often starts elsewhere: a heat-damaged harness, loose connector, poor ECU signal, exhaust leak, or abnormal DPF/SCR temperature condition.

A solid EGT sensor fault diagnosis helps separate a failed sensor from a wiring or operating problem. The steps below focus on symptoms, live data, electrical checks, safe replacement, and prevention for trucks, marine engines, and construction machinery exhaust temperature sensor applications.

Confirm the Fault Before Touching the Sensor

Check the Symptoms That Point to an EGT Sensor Problem

An Exhaust gas temperature sensor issue is worth investigating when the machine shows a check engine light, aftertreatment warning, limp mode, power derating, poor acceleration under load, abnormal DPF regeneration frequency, or increased fuel use. Intermittent warnings after vibration, rain, cold start, or heavy-load operation often point to a connector or harness fault rather than a failed sensing element. On construction machinery, the complaint may appear as derating during digging, loading, climbing, towing, or a fast idle-to-full-load transition.

These symptoms do not prove the sensor itself has failed. They show that the ECU is receiving a signal that may be missing, implausible, delayed, or outside the expected range. A fuel injector fault, EGR-related issue, DPF restriction, turbocharger problem, or abnormal air-fuel condition can also look like an exhaust gas temperature sensor problem. Treat the warning as a signal integrity issue until testing proves the exact failure point.

Read Fault Codes and Live Data First

Start with a diagnostic scanner before removing any component. Record stored codes, pending codes, freeze-frame data, engine load, coolant temperature, vehicle speed, and the exhaust gas temperature sensor position named by the ECU. Sensors may sit before the turbocharger, before the DPF, after the DPF, or near the SCR inlet. Comparative live data is useful when a diesel system uses several temperature sensors around the DPF.

Fault logic matters more than the code label. A circuit fault usually points toward an open circuit, short to ground, short to voltage, failed connector, or failed sensor electronics. A range/performance fault means the ECU still sees a signal, but the signal does not behave correctly compared with engine operation or nearby sensors. If a warmed-up engine shows one sensor stuck at an extreme low value, suspect wiring interruption, connector failure, or sensor failure before blaming the exhaust system.

Inspect the Wiring, Connector, and Mounting Area

Look for Physical Damage Before Electrical Testing

Many Exhaust EGT Sensor faults begin outside the sensor body. The exhaust area exposes the sensor assembly to heat, vibration, debris, oil mist, water ingress, terminal corrosion, and harness rubbing. A visual inspection often finds the real failure faster than an electrical test because melted insulation or a loose connector can explain an intermittent code immediately. For a construction machinery exhaust temperature sensor, mud, dust, pressure washing, and frame shock often damage the connector or harness before the sensing tip fails.

Use a fixed inspection route so nothing is missed. Begin at the threaded boss and look for exhaust leaks, damaged threads, missing heat shields, soot trails, or cable twist. Follow the cable toward the connector, checking clips, heat sleeves, strain relief, crushed insulation, melted jacket, pulled wires, and green corrosion. A cable touching a hot pipe only under engine movement can pass a static inspection, so move the harness gently.

Decide Whether the Fix Is Harness Repair or Sensor Replacement

Damaged wiring should not be ignored just because a new sensor is available. Repair or replace the external harness when damage is outside the sensor assembly, especially if the connector seal has failed or terminal tension is weak. Replace the exhaust gas temperature sensor when the cable is integrated into the sensor and the lead is cracked, heat-damaged, oil-soaked, pulled, or hardened from thermal aging. Do not twist, splice, or extend high-temperature sensor wiring casually because some circuits depend on shielding, CAN communication, SENT output, or thermocouple signal stability.

A practical inspection checklist should include sensor body condition, cable insulation, connector seal, harness routing, heat shield position, thread condition, exhaust leakage, and overheating marks beyond normal soot discoloration. Heavy-duty equipment adds one more item: check whether the harness has enough slack for engine movement. Repeated failures at the same location often mean the routing is wrong, not that several sensors were defective.

Test the Sensor Signal Instead of Guessing

Compare Cold, Idle, and Loaded Temperature Readings

Good EGT sensor fault diagnosis starts by comparing behavior across operating states. On a cold engine, each exhaust gas temperature sensor should read close to ambient temperature, allowing for normal heat soak if the machine was recently used. At idle, the values should rise gradually rather than jump, freeze, or move in the wrong direction. Under controlled load, the response should remain smooth and logical for the sensor’s position in the exhaust stream.

A healthy sensor does not need to match another sensor exactly, because upstream and downstream locations experience different gas flow and thermal mass. The key question is whether the reading makes engineering sense. A pre-turbo exhaust gas temperature sensor should respond quickly to combustion load, while a downstream DPF sensor may lag because the substrate stores heat. These signals protect hot-side components, support regeneration, and help the ECU respond to overheating risk.

For heavy-duty diesel engines, compare the EGT pattern against DPF, SCR, GPF, turbocharger, and exhaust manifold conditions. A sensor that reads normally at idle but becomes erratic under load may have vibration-sensitive wiring. A slow response may indicate wrong probe length, contamination, or an unsuitable response profile. Signal testing separates real overheating from a false temperature signal.

Perform Electrical Checks When Live Data Looks Wrong

Electrical testing should follow the circuit design, not a universal resistance value found online. Check reference voltage or supply voltage if the exhaust gas temperature sensor uses an active circuit, then confirm ground quality, continuity, short to ground, short to power, and terminal fit. A wiggle test is valuable because many faults appear only when the engine moves or the cable vibrates. Use the service manual for the correct resistance, voltage, CAN, SENT, or thermocouple test method.

Not every sensor works the same way. Some designs use thermistor behavior, where resistance changes as temperature changes; other systems use thermocouple probes or internal electronics that send processed data to the ECU. Pin assignment, cable color, connector type, output method, shielding, and channel count must be checked before testing or replacement. Applying the wrong test can create a false failure judgment.

Specification matching is part of diagnosis, not only purchasing. A sensor may use CAN temperature data output, an N-type thermocouple probe, waterproof connector sealing, multi-channel customization, or self-diagnostic capability. These details mean a technician must confirm output, connector type, channel count, and ECU compatibility before choosing a replacement sensor.

Fix the Root Cause: Clean, Repair, Reinstall, or Replace

When Cleaning Helps—and When It Does Not

Cleaning may help only in limited cases. Loose soot around the sensor boss, mild probe contamination, or dirt around the connector exterior can be removed during inspection. A dry connector exterior can reveal cracked seals, missing locks, or corrosion hidden under mud. For construction equipment, cleaning before diagnosis is useful because packed dirt can pull on the cable and hide broken strain relief.

The wrong cleaning method can damage an exhaust gas temperature sensor. Do not sand, scrape, bend, or chemically soak the probe because the sensing tip and sheath are designed for a specific thermal response. Avoid spraying aggressive cleaner into sealed connectors, and do not add extra paste when the sensor already has a coated thread. A damaged housing, cracked cable, or failed connector should be treated as a repair or replacement issue, not a cleaning issue.

Cleaning is not a real fix when the signal is open, shorted, implausible, or unstable after wiring checks. A sensor that fails when the harness is moved has an electrical problem, not a dirt problem. A repeated range/performance code after live-data testing points toward slow response, wrong part selection, interference, or a deeper exhaust condition. Repair should match the failure mode rather than the easiest visible action.

How to Replace the Sensor Correctly

Replacement should be controlled and documented. Let the exhaust cool completely, isolate power if required, unplug the connector, remove clips, and free the harness without pulling the cable. Use the correct socket or wrench on the sensor body, then inspect the exhaust boss threads and sealing area. Fit the replacement without twisting the cable, tighten to the specified torque, restore heat protection, and verify live data before clearing codes.

The correct exhaust gas temperature sensor must match thread size, probe length, bend angle, connector type, signal output, temperature range, response behavior, and installation position. A short probe may sit outside the main gas stream; an overlong probe may face vibration, turbulence, or mechanical contact. A wrong bend angle can force cable tension and cause early failure. An incorrect output type can create a fault immediately, even if the sensor fits the thread.

For high-temperature diesel, turbocharged, SCR, or particulate-filter applications, a high-temperature EGT sensor may be required. A suitable high-temperature model may use a platinum RTD element, Inconel 625 sheath, high continuous operating temperature capability, transient peak temperature resistance, thread options, and bend configurations for heavy-duty diesel, SCR, construction machinery, gasoline, and marine applications. For cold starts, long idle, full-load work, altitude changes, and harsh outdoor conditions, a wide-range model may be more suitable when it supports broad temperature measurement, stainless steel sheath construction, compatible signal output, and use in heavy-duty, stationary power, marine, agricultural, and off-road applications. Replacement selection should be based on specification matching, not only visual similarity.

Verify the Repair and Prevent the Same Fault From Returning

Clear Codes Only After the Signal Is Stable

Verification starts before code clearing. Start the engine, observe live data, compare readings during warm-up, and confirm that the repaired circuit responds smoothly. If the repair involved a DPF, SCR, turbocharger, or engine-load complaint, perform a controlled road test, load test, or service regeneration check according to the manual. Only after no pending codes return should stored codes be cleared.

Clearing codes first is a weak repair because the ECU will re-log the same fault when it sees the same implausible signal. Workshop time is better spent proving the temperature signal is stable through heat, vibration, and load. Fleet teams should document the failed sensor position, operating hours, fault code, harness condition, repair action, and post-repair live data. That record helps identify whether the fleet has a sensor quality issue, routing issue, connector sealing issue, or engine problem.

Prevent Repeat Failures in Heavy-Duty and Construction Machinery

Prevention depends on controlling heat, vibration, moisture, and incorrect routing. Keep harnesses clipped, restore missing heat shields, avoid pressure-washing directly into connectors, and check exhaust leaks near the threaded boss. Inspect routing after engine overhaul, turbo replacement, DPF service, SCR repair, or frame work because a cable can be left too close to the exhaust. Choose a sensor grade that matches the temperature range, signal type, connector sealing, and vibration environment.

Repeated exhaust gas temperature sensor failure may indicate a deeper engine or aftertreatment condition. Over-fueling, injector imbalance, turbocharger inefficiency, restricted DPF flow, abnormal regeneration, or air-fuel control problems can create damaging heat patterns. Off-road equipment adds another common cause: harness movement under chassis vibration, especially when a cable is tied to the wrong bracket. If the same location fails twice, improve routing and heat protection before installing another sensor.

Conclusion

Fixing an Exhaust gas temperature sensor starts with diagnosis, not replacement. Fault codes, live data, wiring condition, connector sealing, exhaust leaks, and operating load all need to be checked before deciding whether to clean, repair, reinstall, or replace the sensor.

For fleets and machinery operators, the right Exhaust EGT Sensor helps restore stable temperature feedback, support DPF/SCR control, and reduce repeat downtime. Zhejiang Kreation Electronic Technology Co., Ltd. provides EGT sensor options for diesel, marine, off-road, and construction machinery applications where accurate signal output and durable installation matter.

FAQ

Q: Can you fix an Exhaust gas temperature sensor without replacing it?

A: Sometimes. If the problem is a loose connector, damaged harness, poor ground, or minor contamination, repair may work. A failed sensor element usually requires replacement.

Q: What are the common symptoms of a bad Exhaust EGT Sensor?

A: Common signs include a check engine light, limp mode, reduced power, poor fuel economy, abnormal DPF regeneration, or temperature readings that stay fixed or change erratically.

Q: How do you diagnose an EGT sensor fault?

A: EGT sensor fault diagnosis starts with fault codes and live data, then checks wiring continuity, connector condition, voltage or resistance behavior, and temperature response during engine warm-up.

Q: Is it safe to clean an exhaust temperature sensor?

A: Light cleaning around the sensor boss or connector exterior may help, but sanding, bending, soaking, or spraying harsh cleaner into the sensor can damage it.

Q: Why does an EGT sensor code come back after clearing it?

A: The code returns when the ECU still detects an open circuit, short, unstable signal, incorrect temperature range, or an unresolved exhaust system problem.

Q: What makes a construction machinery exhaust temperature sensor fail early?

A: Heat, vibration, mud, dust, pressure washing, loose harness routing, damaged heat shields, and weak connector sealing can cause repeat failures in construction machinery applications.
