A failed Exhaust gas temperature sensor can look like a simple warning light, but it often affects much more than one dashboard code. On diesel vehicles and agricultural machinery, incorrect exhaust temperature data may interrupt DPF regeneration, reduce engine power, or make the ECU misread aftertreatment conditions. Replacing the sensor is not difficult when the failed position is confirmed, but guessing can waste parts and time. The key is to verify the fault, choose the right diesel engine exhaust temperature sensor, remove it safely, and confirm normal readings after installation.
Replacement should begin with diagnosis, not guesswork. A failed Exhaust gas temperature sensor may trigger a check engine light, poor DPF regeneration, limp mode, weak engine response, unusual fuel consumption, or a temperature value that stays fixed at an unrealistic number. On diesel vehicles, the fault may also appear during regeneration because the ECU cannot confirm whether the exhaust stream is hot enough for aftertreatment control.
A scan tool helps identify both the stored code and the live data pattern. Cold engine readings should be close to ambient temperature, then rise gradually as load and exhaust flow increase. A reading stuck at maximum, minimum, or far away from nearby sensors usually points to an electrical or sensor fault. If several sensors report strange values at the same time, the problem may involve power supply, ground, ECU reference, or harness damage rather than one failed unit.
Diesel systems often use more than one Exhaust gas temperature sensor. Depending on the layout, sensors may sit before or after the turbocharger, DOC, DPF, or SCR catalyst. Replacing the wrong sensor can leave the original code active, especially on vehicles or machines where multiple connectors look similar.
Before removing the sensor, inspect the visible parts of the circuit. Heat, vibration, road salt, mud, field dust, and poor harness routing can damage the connector or cable. A wiring fault can look exactly like a failed sensor because the ECU only receives an incorrect signal.
Check these points before ordering or installing a part:
● Melted, cracked, or loose connector housing
● Broken insulation near the sensor body
● Corrosion, moisture, or bent terminals inside the plug
● Harness rubbing against brackets or exhaust shields
● Loose routing clips or missing heat protection
● Physical damage to the probe, cable, or sensor hex
● Exhaust leakage around the threaded boss
If the cable, connector, or sensor body is already damaged, replacement is usually more reliable than cleaning. Cleaning may remove surface soot, but it cannot repair a cracked element, weak internal joint, corroded terminal, or heat-damaged signal wire.
Finding | Likely Action |
Sensor value fixed while wiring looks intact | Replace the sensor after confirming position |
Connector melted or terminals corroded | Repair the connector or harness before fitting a new sensor |
Exhaust leak near the sensor boss | Fix the leak, then recheck temperature data |
Same fault appears on several sensors | Check shared power, ground, or ECU circuit |
Live data changes smoothly after cleaning connector | Recheck before replacing parts |
The correct position matters as much as the correct part. An Exhaust gas temperature sensor may be installed before the turbocharger, after the turbocharger, before the DPF, after the DPF, before the SCR catalyst, or after the SCR catalyst. Some diesel engines also use temperature sensors near the oxidation catalyst or particulate filter inlet to support regeneration decisions.
Code labels such as Bank 1 Sensor 1, Sensor 2, or Sensor 3 are useful, but they should not be trusted without checking the service layout. Vehicle platforms and diesel engine configurations do not always name sensor positions in the same way. A sensor described as “upstream” may mean upstream of the DPF on one system and upstream of the turbocharger on another.
Agricultural machinery EGT sensor replacement can be more difficult because access is often restricted by large engine covers, loader frames, shields, or tight exhaust routing. Field machines also collect mud, straw, dust, fertilizer residue, and moisture around the harness. Clean the area before unplugging anything, then trace the cable from the sensor body to its connector so the replacement is matched to the right position.

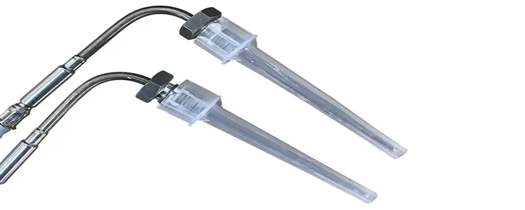

Do not choose a replacement only by appearance. Compare thread size, probe length, connector shape, pin count, cable length, signal output, temperature range, bend angle, and ECU compatibility. A Diesel Vehicle EGTS must fit mechanically and communicate correctly with the engine control system.
For broad diesel applications, a wide-range sensor should support the expected exhaust temperature window and match common thread options such as M10, M12, or NPT configurations when required. For high-load turbocharged engines or aftertreatment zones, the sensor material and heat resistance become more important because continuous high temperature and short thermal peaks can shorten service life. Where sensor placement varies across turbocharger, DPF, and particulate filter positions, installation flexibility should be checked before removal.
Match Point | Why It Matters | What to Check |
Thread size | Prevents exhaust leaks and thread damage | M10, M12, M14, NPT, or machine-specific thread |
Probe length | Affects how the exhaust stream is measured | Compare old and new probe depth |
Connector | Prevents signal mismatch | Plug shape, lock tab, pin count |
Temperature range | Prevents early failure | Match sensor range to location and load |
Cable route | Reduces heat and vibration damage | Follow the original harness path |
Signal type | Keeps ECU communication stable | RTD, thermocouple, analog, digital, or CAN-based output |
Work only when the exhaust system is fully cool. Turbocharger housings, DPF shells, SCR pipes, and exhaust manifolds can stay hot long after shutdown. Park on level ground, apply the parking brake, use proper wheel chocks, and raise the vehicle or machine only if safe support points are available.
Useful tools include an OBD scanner, penetrating oil, an EGT sensor socket or slotted deep socket, ratchet, extension, torque wrench, gloves, eye protection, and a small wire brush for the external thread area. A normal deep socket may not work because the sensor cable passes through the socket opening. A slotted sensor socket keeps load on the hex while protecting the cable during removal.
For agricultural machinery and off-road equipment, remove dirt before opening the connector. Loose dust can fall into the plug and create a new electrical problem after installation. Compressed air, a soft brush, and a clean cloth are usually enough around the connector area. Avoid forcing mud into the terminals or spraying aggressive chemicals into sealed electrical plugs.
Release the connector lock before pulling the plug apart. Many Exhaust gas temperature sensor connectors use a tab, sliding lock, or secondary clip that becomes brittle after years of heat exposure. Pulling on the wire can break the terminal crimp or stretch the conductor inside the insulation.
If several sensors sit close together, mark the connector and sensor position before removal. A simple tag, paint mark, or photo can prevent crossed connectors during reassembly. Wrong reconnection may cause continued fault codes, incorrect temperature comparison, or failed regeneration even when the new part is technically good.
Connector inspection also gives clues about the root cause. Green corrosion, blackened terminals, melted plastic, or loose pins should not be ignored. Installing a new sensor into a damaged plug can produce the same fault again within minutes.
Stuck sensors are common because heat cycling, soot, corrosion, and vibration tighten the threaded joint over time. Spray penetrating oil around the base and allow it to work before applying force. Clean loose rust around the boss so the socket sits squarely on the sensor hex.
Use the correct slotted socket and keep it aligned with the sensor body. Side loading can round the hex, twist the probe, or damage the threaded boss. If the sensor begins to move, turn it slowly and work it back and forth instead of forcing it out in one hard motion. This reduces the chance of galling or pulling damaged threads from the exhaust bung.
Excessive force can turn a simple diesel engine exhaust temperature sensor job into exhaust repair. A broken sensor, stripped boss, or cracked bung may require extraction tools, welding, or pipe replacement. If the sensor is seized badly, professional removal is often cheaper than damaging a DPF housing or turbo outlet pipe.
After removing the old sensor, inspect the threaded boss and sealing area. Remove loose rust, soot, and debris from the outer surface, but avoid aggressive scraping inside the exhaust stream, as debris may enter the aftertreatment system.
Check the old sensor threads for flattening, tearing, or galling. If the new sensor does not start smoothly by hand, stop and inspect the thread size, pitch, and boss condition. Do not force it, as cross-threading can damage the exhaust boss and cause leakage.
Avoid adding anti-seize or hot thread paste unless the part instructions require it. Some sensors already have coated threads, and extra compound may affect grounding, sealing, or tightening accuracy.
Start the new Exhaust gas temperature sensor by hand for several turns to confirm alignment. Once seated correctly, tighten it to the specified torque. Over-tightening may damage the boss or sealing surface, while under-tightening can cause exhaust leaks, inaccurate readings, or vibration loosening.
Keep the probe away from nearby metal parts during installation. On tight layouts, check the cable exit angle before final tightening to avoid interference with shields, brackets, or exhaust components.
Cable routing is critical to sensor life. Follow the original path, use factory clips, and keep the cable away from turbo housings, exhaust manifolds, belts, driveshafts, sharp brackets, and moving parts. Avoid tight bends near the sensor body.
Agricultural machinery EGT sensor applications need extra care because dust, crop residue, vibration, and long high-load operation can damage exposed harnesses. Before starting the engine, check for common mistakes: over-tightening, cross-threading, reusing a damaged connector, routing the cable near hot parts, installing the wrong sensor position, or clearing codes before checking live data.
A correct installation should sit squarely in the boss, lock securely at the connector, and follow a clean, protected harness path. Reinstall any removed heat shielding before operating the engine under load.
After installation, clear the stored codes and watch live data instead of assuming the job is finished. A cold engine should show a reasonable temperature compared with ambient air and nearby sensors. As the engine warms, the reading should increase smoothly, not jump suddenly or stay fixed at one value.
Some aftertreatment systems need a short drive cycle, stationary regeneration request, or operating cycle before the ECU confirms the repair. Avoid heavy load until the harness is secure and no exhaust leak is present. If the scan tool shows normal temperature response and the code does not return, the Exhaust gas temperature sensor replacement is likely successful.
A new sensor can fail again if the original problem was not the sensor itself. Extreme exhaust temperature may come from injector faults, abnormal combustion, blocked DPF, SCR malfunction, exhaust leakage, turbocharger issues, or a regeneration problem. Damaged wiring, poor grounding, or ECU-side circuit faults can also bring back the same code.
If the same fault returns immediately, recheck the connector, pin fit, harness continuity, sensor position, and part compatibility. If temperature values are high but the new sensor reports smoothly, investigate the engine or aftertreatment system rather than replacing the sensor again. Reliable repair depends on confirming both the component and the operating condition around it.
Changing an Exhaust gas temperature sensor is most effective when it starts with diagnosis, not guesswork. Confirm the fault code, inspect the wiring and connector, identify the correct sensor position, install the replacement carefully, and verify live temperature data before considering the repair complete.
For diesel vehicles and agricultural machinery, a reliable diesel engine exhaust temperature sensor helps the ECU manage regeneration, emissions control, and engine protection more accurately. Zhejiang Kreation Electronic Technology Co., Ltd. provides EGT sensor options for demanding diesel applications where temperature range, fitment, and long-term signal stability matter.
A: Common signs include a check engine light, DPF regeneration problems, limp mode, poor fuel economy, reduced power, or live temperature readings stuck at unrealistic values.
A: Yes, if the sensor is accessible and not seized. You need the correct socket, a scan tool, safe lifting support, and confirmation of the exact sensor position.
A: Replace it when diagnosis shows unstable data, circuit faults, damaged wiring, or physical sensor damage. Cleaning may help connectors, but it cannot repair internal sensor failure.
A: It may be installed before or after the turbocharger, DPF, DOC, or SCR catalyst. The exact position depends on the engine and aftertreatment layout.
A: The fault may come from damaged wiring, a corroded connector, wrong sensor position, exhaust leaks, DPF blockage, abnormal combustion, or an ECU-side circuit issue.
A: It can be harder because of dust, vibration, exposed harness routing, and tight access around large diesel engines. Cleaning and cable routing are especially important.
