Features of NOx sensor

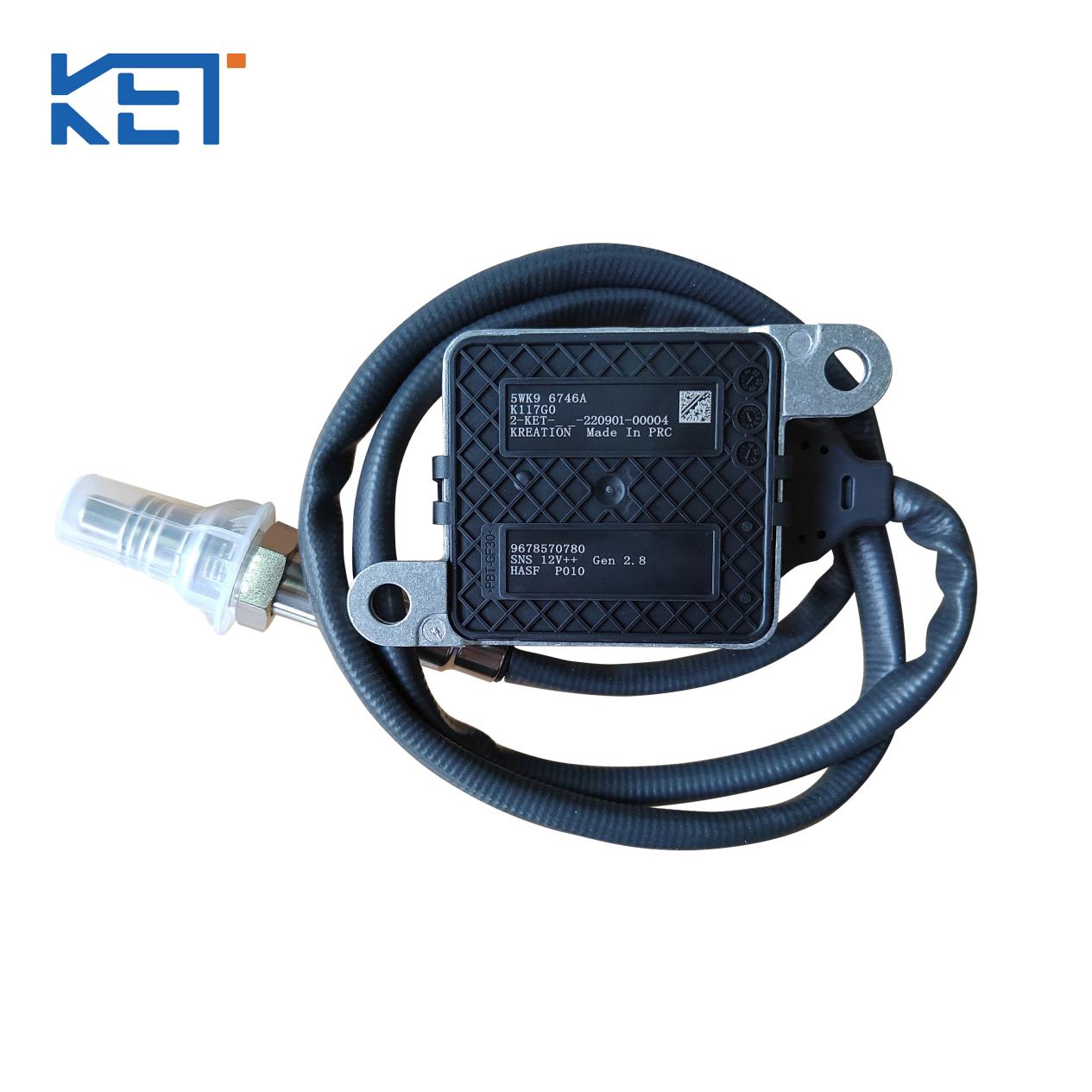

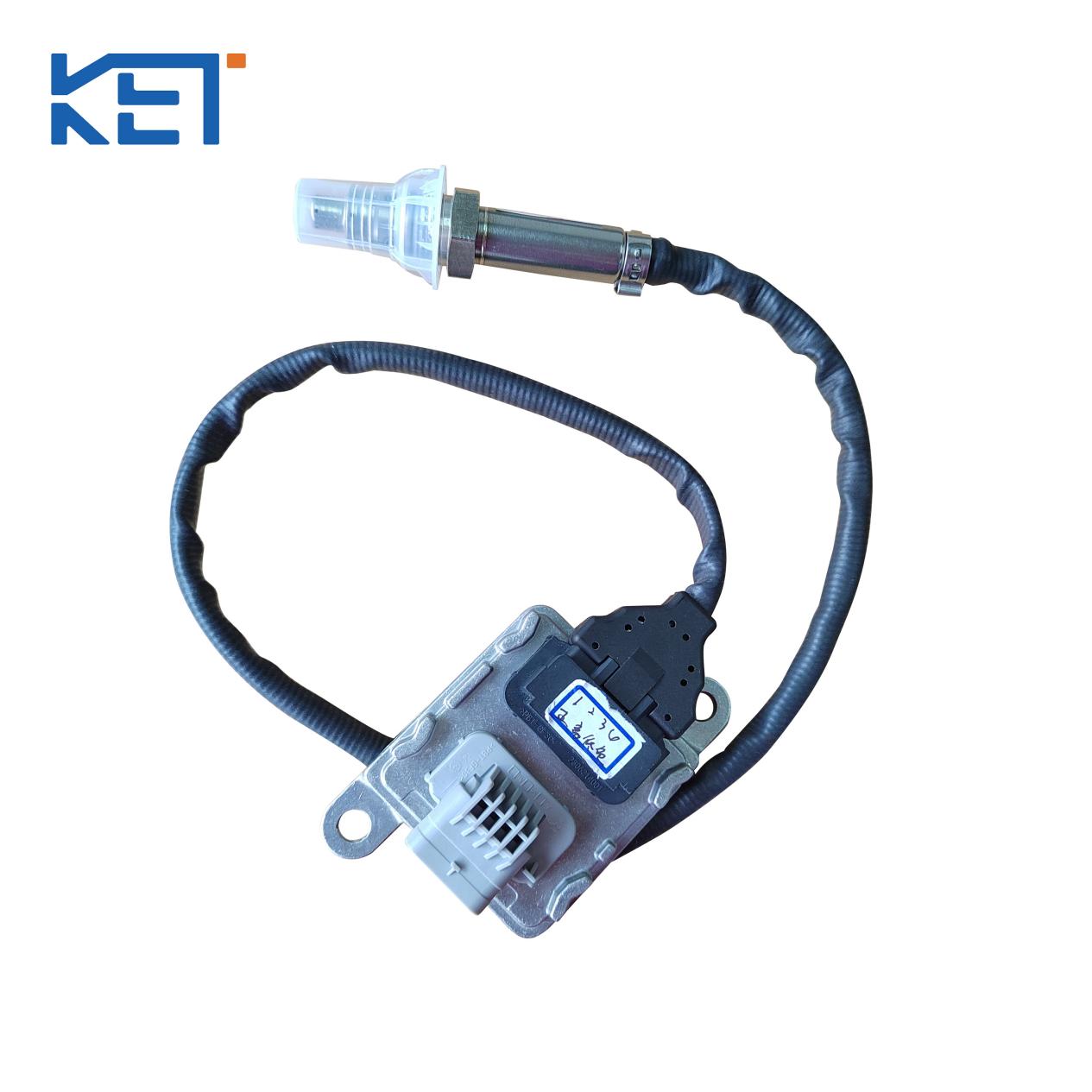

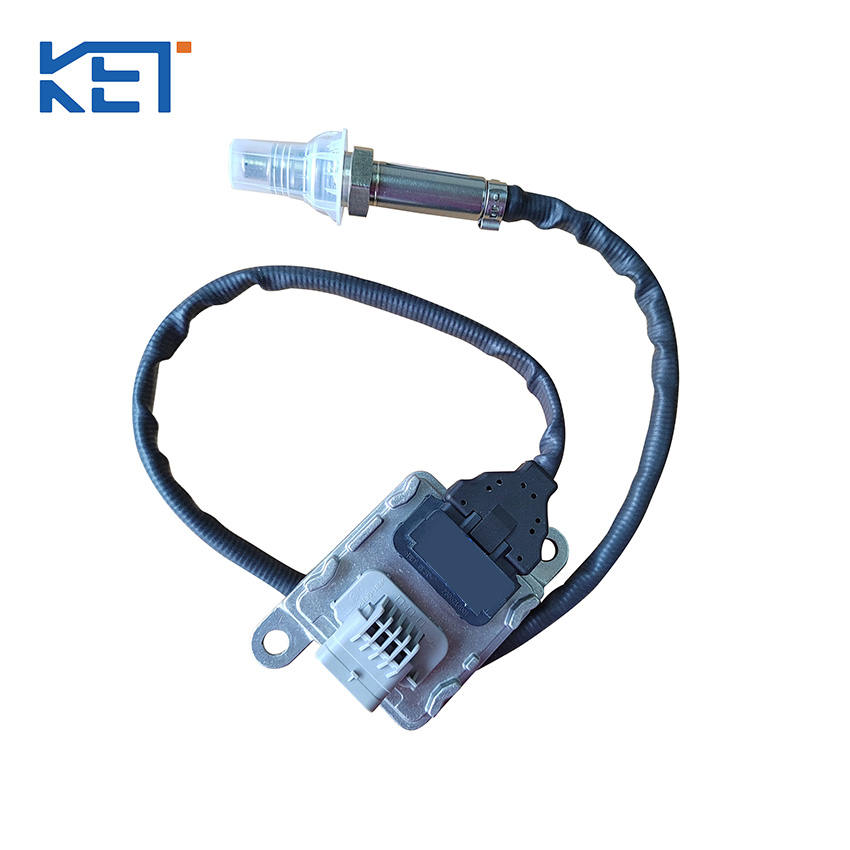

The NOx sensor 5WK9 6746A is one of the core components of the diesel exhaust aftertreatment system - SCR (Selective Catalytic Reduction),providing the most important signal-NOx concentration to the SCR control system. The SCR controller calculates the appropriate amount of DEF based on the NOx concentration, drives the doser to spray to the SCR inlet, and obtains gas with very low NOx concentration at the SCR outlet.
The characteristics of the NOx sensor
Product Specification
Nox Detection Range | 0～2500ppm O2：-12%～21% |
Nox Accuracy | 0～100ppm: ±10ppm;100～500ppm: ±10%; |
O2 Accuracy | 0%～5%: ±0.25%;5%～21%: ±5% |
Light-off Time | Can reach detection state in 160s |
Response Time | T(10-90%):Nox<5300ms T(10-90%):O2-4900ms |
Supply Voltage | 12V,24V in universal version |
Design Life | 6000h or 350000km |
Nitrogen Oxide – NOx Sensor
1. Quality: We have strict quality standards and good reputation.
2. Low MOQ: It can meet your business needs.
 |  |
The company has NOx sensor.
Leveraging advanced technologies and a customer-centric approach, Kreation is dedicated to delivering high-precision, reliable solutions that drive efficiency, compliance, and sustainability. The company’s R&D efforts prioritize cutting-edge sensor innovations tailored to meet evolving industry demands, particularly in emission control and energy management.
Global Reach: Serves OEMs, aftermarket distributors, and industrial clients worldwide with scalable, customizable solutions.
